Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | High Brightness Open Frame LCD Module |
| Model Number: | Model：OF215EDCL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 pcs / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Brightness: | 2000 Nits | Power Consumption: | 85W |
| High Light: | open frame lcd screen,lcd open frame monitor |
||

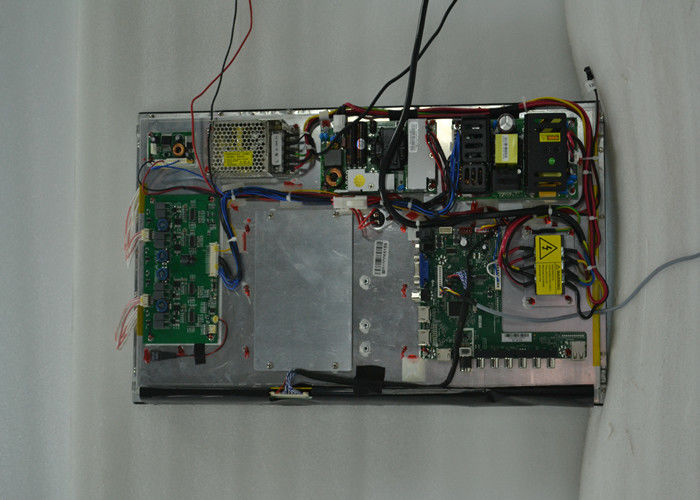

21.5”High Bright Open Frame LCD Module Model:OF215EDCL
LED Array Backlight Enhanced
Model:OF215EDCL
FEATURES:
Active Matrix TFT-LCD Display
LED Direct Type Backlight Enhanced
High Brightness 2000 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 16:9 in landscape or portrait mode
Super Wide Viewing Angle 176 deg (L/R)
Wide operating temp range, -20 ～ 50o C option
LVDS (Low Voltage Differential Signaling) Interface
Main Specs of 21.5” High Bright LCD module
| PANEL TYPE | a-Si active matrix TFT-LCD | |
| ACTIVE AREA | 476.64(H) x 268.11(V) mm | |
| NATIVE RESOLUTION | 1920 x 1080 RGB, VGA to WUXGA | |
| PIXEL PITCH | 0.2482(H) x 0.2482(V) mm | |
| COLOR | 16.7 M, 8 bits depth | |
| BRIGHTNESS | 2000 cd/m2, LED Backlight Enhanced | |
| CONTRAST RATIO | 1000:1, Dynamic contrast ratio: 20000:1 | |
| DIMMING | Auto-dimming by Light Sensor, 100% to 30% | |
| BLU LIFETIME | 40,000 Hours Typical | |
| VIEWING ANGLE | 89/89/89/89 L/R/U/D | |
| INTERFACE | VGA/HDMI | |
| VIDEO INPUT | 0.7Vp-p / 75 ohm, Auto detect NTSC/PAL | |
| RESPONSE TIME | 10/6ms Typical(Tr/Td) | |
| REMOTE CONTROL | Support for Full OSD Features | |
| OPERATION VOLTAGE | 12VDC | |
| POWER CONSUMPTION | 85 Watt at Highest Brightness Level | |
| STANDBY MODE | 3 Watt or less | |
| ACCESSORIES | Remote Controller, HDMI cable | |
| VGA cable x 1 | ||
|
OPERATING (Option) |
Android OS Media Player, 1GDDR, 8G SSD 3G wireless communication |
|
|
OUTLINE DIMENSION PANEL WEIGHT |
495.6(H) x 292.2(W) x 26(D) mm, 5 Kg approx after Modified |
|
| COOLING | Fans cooling by temper sensor | |
| ENVIRONMENTAL |
Operating Temperature -10-50C, Wide temp. -20-50C (option) |
|
| Operating Humidity 10%-85% | ||
| Storage Temperature -30-60C | ||
| Storage Humidity 5%-90% | ||
| ENCLOSURE | IP54 Waterproof Enclosure Option | |
| Iron Sheet Folded front frame and back cover, | ||
| Vandal Glass on front, VESA mount | ||
| WARRANTY | 1-3 Years |
