Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Model Number: | Model：OF065EECL-BD |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300 pcs / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 640 X 480 VGA |
|---|---|---|---|
| Brightness: | 1000 Nits | Power Consumption: | 12W |
| High Light: | open frame lcd screen,high brightness lcd monitor |
||

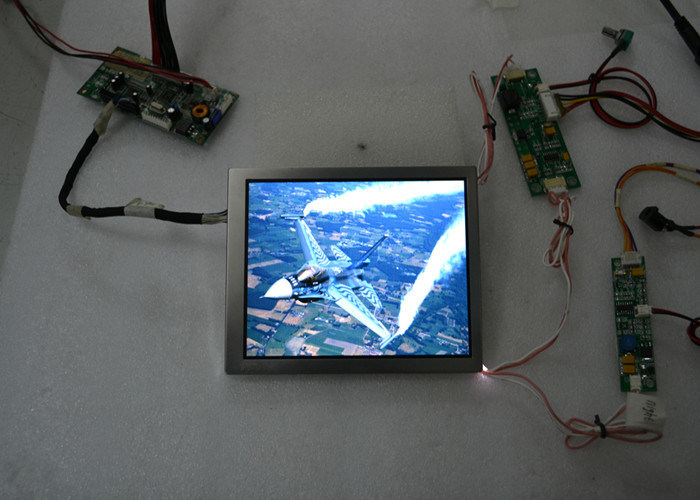

6.5” high bright LCD module Model:OF065EECL-BD
LED Edge Type Backlight Enhanced
Model:OF065EECL-BD
FEATURES:
Bright Active Matrix TFT-LCD Display
640 x 480 Max. Resolution
Digital or Analog Interface
Wide Viewing Angles 160 deg (L/R)
Completely Sunlight Viewable with optical bonding
Aspect Ratio: 4:3
Specification:
Display Size: 6.5 Inch
Panel Type: TFT Active
Resolution Capabilities: 640X480, VGA
Pixel Format: 640x480,
Pixel Pitch: 0.207mm (H) x 0.207 mm (V)
Viewing Angle: Left / Right: 80º/80º Up / Down: 70º/70º
Active Area: 5.22” (w) x 3.91” (h)
132.48 (H) x 99.36(V) mm
Contrast Ratio: 600:1 Typical
Backlight type: LED high bright edge type
Brightness: 1000 nits after bonding, Sunlight Viewable
Dimming range: 1000 nits to 1 nits dimming for daytime/at night
Dimming method: Auto by light sensor or manually by POT
Backlight lifetime: 50,000 Hours Typical
Colors Supported: 6 bit 262K/ 8 bit 16.2M
Electrical interface: CMOS 6 bit Digital RGB,
Power Source: 12 VDC, 9-36VDC input(option)
Power Consumption: 12 Watt (9.6Watt for BLU + Panel, 2.5Watt A/D board)
1 Watts Sleep Mode
Physical Size: 153.0(H) x 118.0(V) x 10.9(D)
Temperature: Operating: -30° to 85°C
Storage: -30° to 85°C
Humidity Operating: 5 to 95% NC
Storage: 5 to 95% NC
Response Time: 15msec tr, 10msec tf
IP65 Option: Alu block milled front, alu sheet folded backcover
Optical Bonding with AR glass + ITO Coating(option)
AR coating + ITO coating: ITO Resistiance 9.6 ohm
Transparency: >90%
Thickness of AR+ITO glass: 2.7mm
Thickness of optical bonding: 0.7-0.9mm
ITO Shield: Copper type around edge of glass for grounding
A/D board feature:
Interface: VGA and Composite Video
OSD Key Function: Menu, -, +, Auto/Sel, On/Off
Power Input: 12VDC/1.5A
