Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Model Number: | Model：OF084EECL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| OF084EECL-S: | OF084EECL | ||
|---|---|---|---|
| High Light: | high brightness lcd monitor,lcd open frame monitor |
||

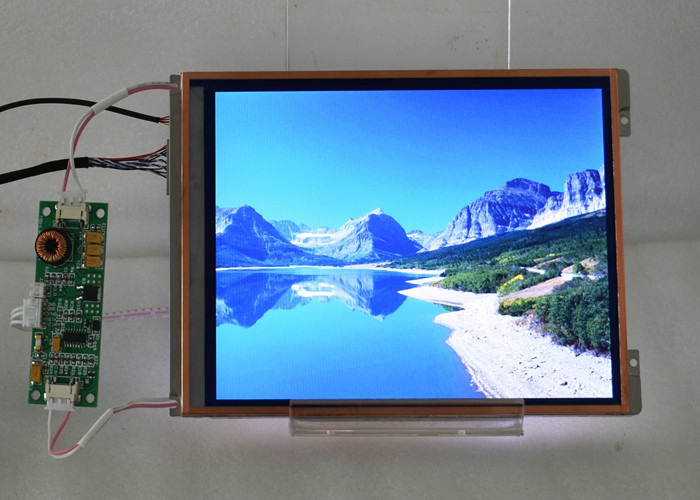

8.4” high bright LCD module Model:OF084EECL
LED Array Backlight Enhanced
Model:OF084EECL
FEATURES:
Active Matrix TFT-LCD
High Brightness 1000 nits, Sunlight Viewable
800 x 600 Max. Resolution
Aspect Ratio: 4:3
Wide Viewing Angles 150 deg (L/R)
VGA, Composite (NTSC/PAL auto detected)
Wide operating temp range, -30 ～ 70 oC
Main Specs of 8.4" high bright LCD module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 170.4mm x 127.8 mm |
| RESOLUTION | 800 x 600 RGB SVGA resolution |
| PIXEL PITCH | 0.213(H) x 0.213(V) mm |
| COLOR | 6-bit, 262K colors, 8-bit 16.2M color |
| BACKLIGHT TYPE | LED Edge type |
| BRIGHTNESS | 1000cd/m2, LED Backlight Enhanced |
| DIMMING | auto dimming by Light Sensor or manually by POT |
| CONTRAST RATIO | 600:1 |
| VIEWANGLE | 75/75/75/75 |
| INTERFACE | LVDS |
| RESPONSE TIME | 10ms tr, 25msec tf |
| LIFE TIME | 40000 hrs |
| OPERATING VOLTAGE | 12VDC, 1.3A |
| POWER CONSUMPTION | 9 Watt |
| STANDBY MODE | 2 Watt or less |
| DIMENSION | 203.0(W) × 142.5 (H) × 10(D) mm (typ.) |
| ENVIRONMENTAL | Operating Temperature -30～70 oC, |
| Operating Humidity 10%～90% | |
| Storage Temperature -30～85 oC | |
| Storage Humidity 10%～90% | |
| WARRANTY | One year |
