Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Model Number: | Model：OF150EECL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300 pcs / month |
| Model：OF150EECL: | Model：OF150EECL | ||
|---|---|---|---|
| High Light: | open frame lcd screen,lcd open frame monitor |
||

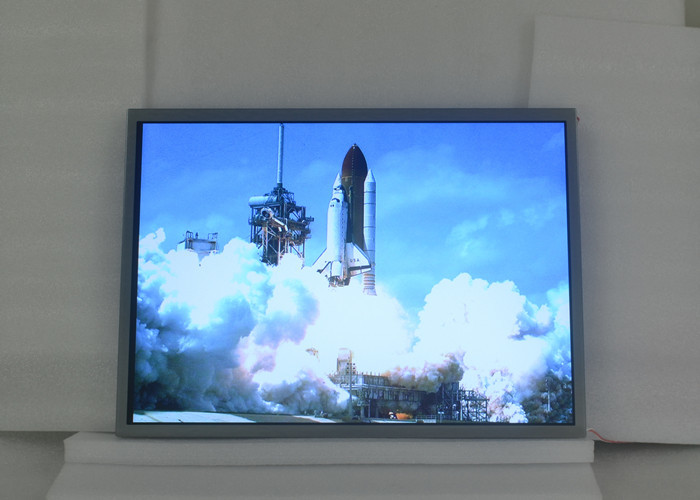

15” High Bright LCD Module Model:OF150EECL
LED Edge Type Backlight Enhanced
Model:OF150EECL
FEATURES:
Active Matrix TFT-LCD
High Brightness 1500 nits, Sunlight Viewable
1024 x 768 Max. Resolution
Aspect Ratio: 4:3
Wide Viewing Angles 160 deg (L/R)
Wide Operating Temp Range, -35 ～ 65o C
Main Specs of 15” High Bright Open Frame LCD Module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 304.128 x 228.096 mm |
| NATIVE RESOLUTION | 1024 x 768 RGB VGA to XGA resolution |
| PIXEL PITCH | 0.297(H) x 0.297(V) mm |
| COLOR | 8 bits 16.7M selectable |
| BACKLKGHT TYPE | LED Edge type |
| BRIGHTNESS | 1500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 700:1, Dynamic contrast ratio up to 10000:1 |
| DIMMING |
100:1 auto dimming by Light Sensor or manually by + / - switch or POT |
| VIEWING ANGLE | 80/80/80/80 |
| RESPONSE TIME | 8ms tr, 17ms tf |
| INTERFACE | VGA and composite video |
| LIFETIME | >45000 hrs |
| OPERATING VOLTAGE | 12VDC, 3A |
| POWER CONSUMPTION | 23Watt for 1500 nits exclude heater, |
| STANDBY MODE | 1.2 Watt or less |
| ACCESSORIES | VGA cable and AV cable (option) |
| POWER SUPPLY | Power Adapter with Cord (option) |
| ENCLOSURE | Aluminum milled fully sealed IP66 option |
|
DIMENSION WEIGHT |
326.5(H) x 253.5(V) x 14.5(D) mm for panel 1.1 Kg approx. |
| OPERATING | 12VDC Input Voltage |
| SHOCK | 50G half sine wave 1 time for X, Y, Z direction |
| VIBRATION | 1.5G 10-500HZ X,Y,Z directions 1.5mm, |
|
ENVIRONMENTAL (option) |
Operating Temperature -20-65 deg C, Wide temp. -35-65C with internal heater, |
| Operating Humidity 10%-85% | |
| Storage Temperature -40-75C | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
