Place of Origin: | China |
---|---|
Brand Name: | Maxbright |
Certification: | Certificate of Approval |
Model Number: | Model : M201EEBL-BD-R |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + carton packaging |
Delivery Time: | 4~5 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50 sets / month |
Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1600 X 1200 |
---|---|---|---|
Brightness: | 800 Nits | Power Consumption: | 40W |
Operating Voltage: | 100-230VAC, 18-36VDC Option | Operating Temperature: | -20 - 60C |
Highlight: | waterproof lcd monitor,high brightness lcd monitor |

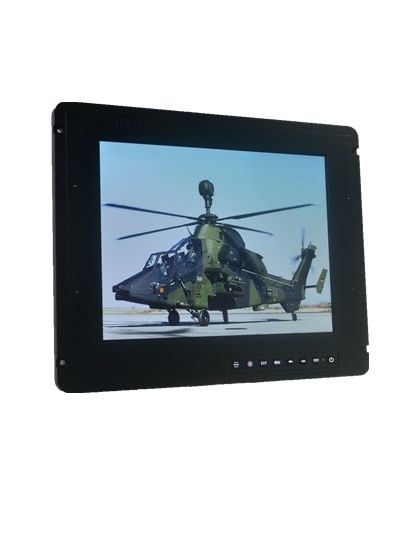

20.1” High Bright Rugged LCD Monitor Model :M201EEBL-BD-R
with LED edge type backlight enhanced
Model :M201EEBL-BD-R
The Maxbright M201EEBL-R is a high bright 20.1″ TFT LCD to create a wide-temperature, ruggedized, flat panel console monitor perfect for a variety of HMI and control applications in hazardous area locations.
Featuring edge type LED backlight technology, the M201EEBL-R offers an impressive extended operating temperature range of -20° to +60°C with no internal heaters or cooling fans required. The front bezel of the monitor maintains NEMA 4/IP65 protection from sprayed liquids. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.
PRODUCT HIGHLIGHTS
Items | Parameters |
Active Area | 408(W) × 306(V)mm |
Brightness | 800 cd/m² Manual Dimming from 100% to 1% by POT |
Resolution | 1600 × 1200 RGB |
Interface | DVI,VGA,RS232,Power Input |
AR/Bonding | AR glass / ITO coading with Optical Bonding |
Touch Screen | 5-wire Resistive Touch with RS-232 Controller |
Power Consumption | 40W at highest brightness level |
Operating Voltage | 100 - 230 VAC, 18-36VDC voltage input available |
Operating Temperature | -20°C - 60°C |
EMC | CE102 10KHz–10MHz RE102 10KHz–1GHz or MIL-STD-461E |
Anti-Shack and Vibration | Design Satisfy GJB 150.16A GJB 150.18A or MIL-STD 810 Standard |
