Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | Maxbright |
Certification: | Certificate of Approval |
Model Number: | M240EECL-RH |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
Delivery Time: | 4~5 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50 sets / Month |
Panel Type: | A-Si Active Matrix TFT-LCD | Brightness: | 1000 Nits |
---|---|---|---|
Resolution: | 1920 X 1200 | Dimming: | Manual Dimming 100% To 1% By POT |
Operating Voltage: | 100 - 230 VAC, 28VDC Model Available | Operating Temperature: | -20 To 60 C |
Highlight: | ruggedized lcd monitor,waterproof lcd monitor |

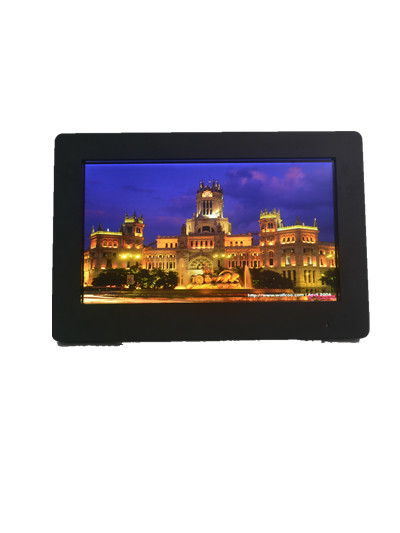

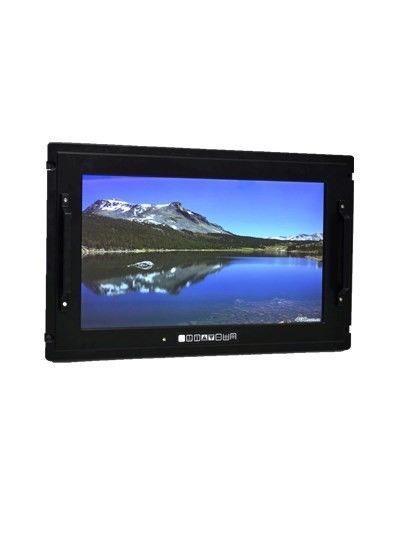

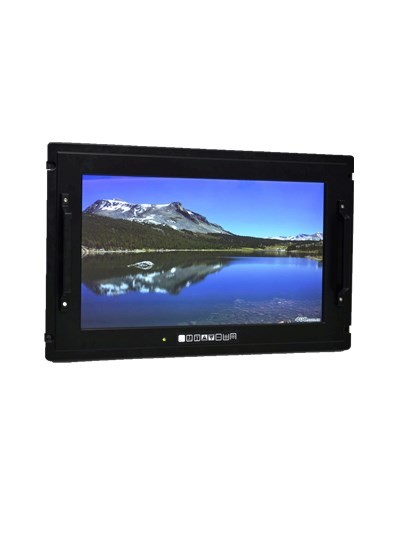

24” High Bright IP65 Rugged LCD Monitor Model : M240EECL-RH
with LED edge type backlight enhanced
Model : M240EECL-RH
The Maxbright M240EECL-R is a high bright 24″ TFT LCD to create a wide-temperature, ruggedized, flat panel console monitor perfect for a variety of HMI and control applications in hazardous area locations.
Featuring edge type LED backlight technology, the M240EECL-R offers an impressive extended operating temperature range of -20° to +60°C with no internal heaters or cooling fans required. The front bezel of the monitor maintains NEMA 4/IP65 protection from sprayed liquids. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.
PRODUCT HIGHLIGHTS
Items | Parameters |
Active Area | 518.4(W) x 324.0(V) mm |
Brightness | 1000 cd/m² Manual Dimming from 100% to 1% by POT |
Resolution | 1920 x 1200, VGA to WUXGA resolution |
Interface | VGA,HDMI,RS-232,Power |
Touch Screen | 5-wire Resistive Touch with RS232 controller |
Power Consumption | 100W |
Operating Voltage | 100~230VAC, 28VDC voltage input available |
Operating Temperature | -20°C - 60°C |
EMC | Satisfy CE102 10KHz–10MHz RE102 10KHz–1GHz or MIL-STD-461E Standard |
Anti-Vibration | 2.5G 5‐200HZ X,Y,Z directions 11min |
Anti-Shock | 60G half sine wave Z direction 6ms 30G half sine wave X/Y direction 11ms |
