Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | High Bright Rugged Monitor |
| Certification: | Certificate of Approval |
| Model Number: | Model : M121EECL-R |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| M121EECL-R: | Model : M121EECL-R | ||
|---|---|---|---|
| High Light: | ruggedized lcd monitor,waterproof lcd monitor |
||

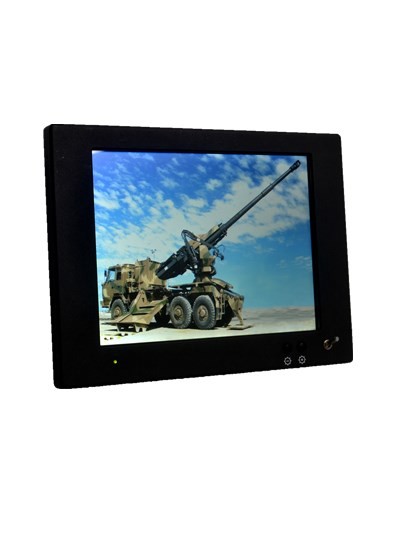

12.1” High Bright Rugged LCD Monitor Model : M121EECL-R
with LED edge type backlight enhanced
Model :M121EECL-R
The Maxbright M121EECL-R is a high bright 12.1″ TFT LCD to create a wide-temperature, ruggedized, flat panel monitor perfect for a variety of HMI and control applications in hazardous area locations.
Featuring edge type LED backlight technology, the M121EECL-R offers an impressive extended operating temperature range of -30° to +60°C with no internal heaters or cooling fans required. The front bezel of the monitor maintains NEMA 4/IP65 protection from sprayed liquids. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.
PRODUCT HIGHLIGHTS
| Items | Parameters |
| Active Area | 245.76(W) × 184.32(V)mm |
| Brightness | 1000 cd/m² Manual Dimming 100% to 1% by POT |
| Resolution | 1024×768 RGB |
| Touch Screen | 5-wire Resistive Touch with USB Controller |
| AR/ Bonding | AR glass /ITO coading with Optical Bonding |
| Interface | DVI,VGA,USB,Power Input |
| Power Consumption | 13W/ 40W(Heater glass) |
| Operating Voltage | 12VDC/ 9-36VDC wider voltage input range option |
| Operating Temperature | -20°C - 60°C, wider -30°C - 60°C operating termperature available |
| EMC compatiable | CE102 10KHz–10MHz RE102 10KHz–1GHz or MIL-STD-461E |
| Anti-Shock and Vibration | Designed Satisfy GJB 150.16A GJB 150.18A or MIL-STD-810 Standard |
