Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | Certificate of Approval |
| Model Number: | Model : M050EECL-R |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pcs / month |
| Model : M050EECL-R: | Model : M050EECL-R | ||
|---|---|---|---|
| High Light: | waterproof lcd monitor,high brightness lcd monitor |
||

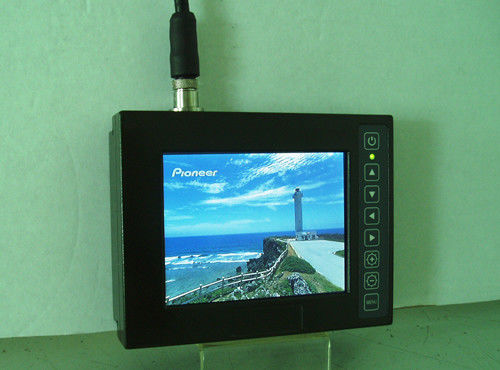

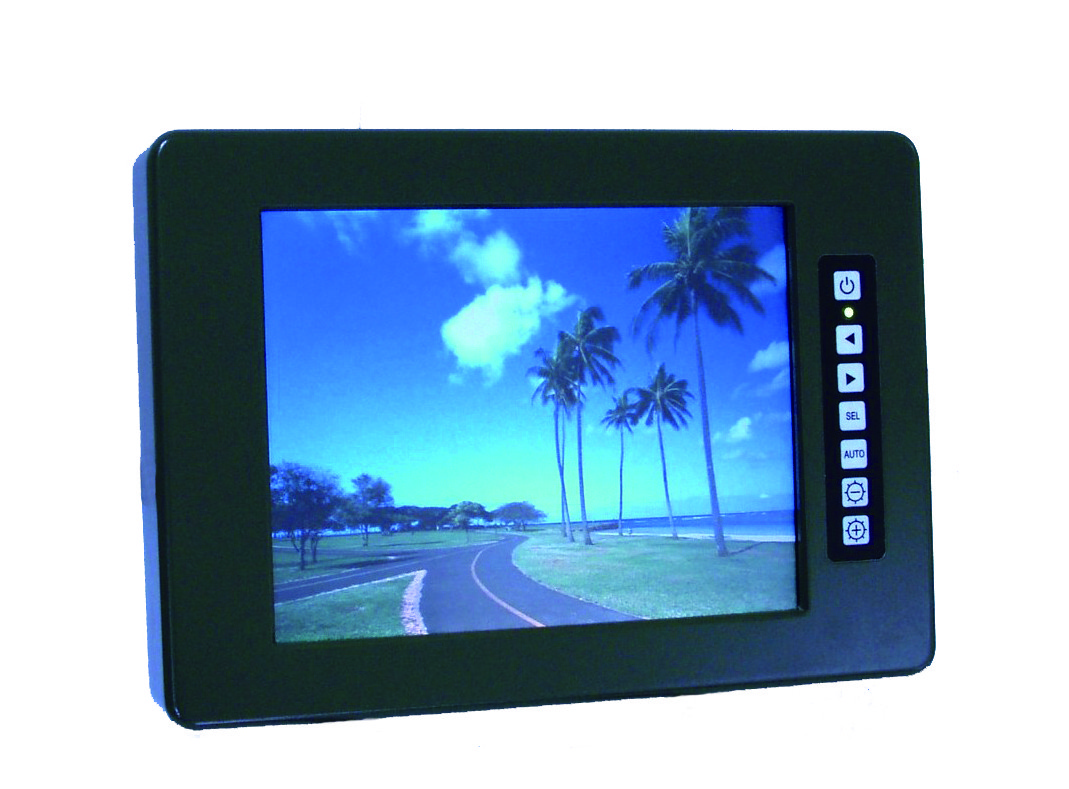

Maxbright 5” High Bright IP68 Rugged Monitor
with LED edge type backlight enhanced
Model : M050EECL-R
FEATURES:
Active Matrix TFT-LCD
Aspect Ratio: 4:3
High Brightness >1000 nits, Sunlight Viewable
640 x 480 Max. Resolution
Wide Viewing Angles 140 deg (L/R)
VGA, Composite (NTSC/PAL auto detected)
Wide operating temp range, -20 ～ 70 oC
Main Specs of 5" high bright LCD module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 101.568(W) x 76.176(H) mm |
| RESOLUTION | 640 x 480 RGB VGA resolution |
| PIXEL PITCH | 0.0529(W) x 0.1587(V) mm |
| COLOR | 6-bit, 262K colors, |
| BACKLIGHT TYPE | LED Edge type |
| BRIGHTNESS | 1000-1200cd/m2, LED Backlight Enhanced |
| DIMMING | auto dimming by Light Sensor or manually by POT |
| CONTRAST RATIO | 500:1 |
| VIEWANGLE | 70/70/50/70 |
| INTERFACE | Digital |
| RESPONSE TIME | 10ms tr, 15msec tf |
| LIFE TIME | 45000 hrs |
| OPERATING VOLTAGE | 12VDC, 0.5A |
| POWER CONSUMPTION | 4 Watt for whole module |
| STANDBY MODE | 0.5 Watt or less |
| DIMENSION | 117.65(W) × 88.43 (H) × 7.2(D) mm (typ.) |
| ENVIRONMENTAL | Operating Temperature -20～70 oC, |
| Operating Humidity 10%～90% | |
| Storage Temperature -30～80 oC | |
| Storage Humidity 10%～90% | |
| WARRANTY | One year |
