Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | Certificate of Approval |
| Model Number: | Model : M190EECL-R |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / month |
| Panel Type: | A Si Active Matrix TFT-LCD | Resolution: | 1280 X 1024 |
|---|---|---|---|
| Brightness: | 1000 Nits | Power Consumption: | 26W |
| Operating Voltage: | 100-230VAC, 9 -36 VDC Option | Operating Temperature: | -20 -- 60C |
| High Light: | ruggedized lcd monitor,waterproof lcd monitor |
||

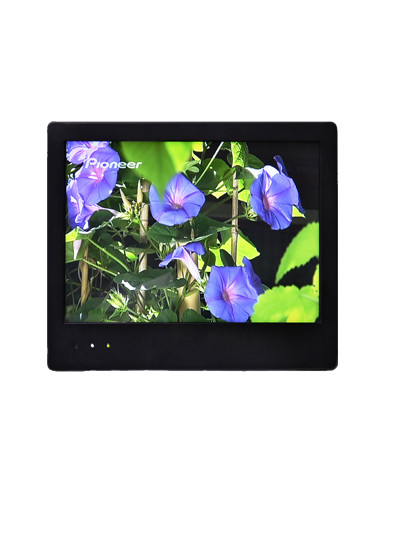

19” High Bright Rugged LCD Monitor Model :M190EECL-R
with LED edge type backlight enhanced
Model :M190EECL-R
The Maxbright M190EECL-R is a high bright 19″ TFT LCD to create a wide-temperature, ruggedized, flat panel monitor perfect for a variety of HMI and control applications in hazardous area locations.
Featuring edge type LED backlight technology, the M190EECL-R offers an impressive extended operating temperature range of -20° to +60°C with no internal heaters or cooling fans required. The front bezel of the monitor maintains NEMA 4/IP65 protection from sprayed liquids. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.
PRODUCT HIGHLIGHTS
| Items | Parameters |
| Active Area | 376.32(W) x 301.06(V)mm |
| Brightness | 1000 cd/m² |
| Resolution | 1280 x 1024 VGA to SXGA resolution |
| Interface | VGA,USB,POWER |
| Touch Screen | 5-wire Resistive Touch with USB controller |
| Power Consumption | 26W |
| Operating Voltage | 100~230VAC, 9-36VDC wide input voltage range option |
| Operating Temperature | -20°C - 60°C |
| EMC | Designed Satisfy GB17625.1-2012 standard requirement |
