Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | Certificate of Approval |
| Model Number: | Model : M104EECL-R |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 640 X 480 |
|---|---|---|---|
| High Light: | ruggedized lcd monitor,high brightness lcd monitor |
||

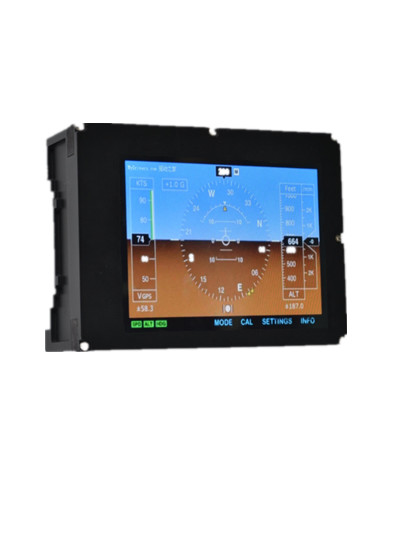

Maxbright 6.4”LCD Avionic Module Model : M064EECL-R
with LED edge type backlight enhanced
Model : M064EECL-R
The Maxbright M064EECL-R is a high bright and NVIS compatible 6.4″ TFT LCD to create a wide-temperature, ruggedized, day time and night vision flat panel monitor perfect for a variety of outdoor HMI and control applications in hazardous area locations.
Featuring edge type dual LED backlight system technology, the M064EECL-R offers both high bright for day time sunlight readable, and impressive extended operating temperature range of -30° to +60°C with no internal heaters or cooling fans required. For increased durability, the touchscreen integrates a vandal AR glass surface that is waterproof, abrasion/scratch resistant, and impervious to flames, chemicals, solvents and stylus use.
PRODUCT HIGHLIGHTS
| Items | Parameters |
| Active Area | 210.4(H)×157.8(V) mm |
| Brightness | 1800 cd/m² / 1200 cd/m² |
| Resolution | 800×600 / 1024×768 RGB |
| Touch Screen | 5-wire Resistive Touch with RS232 controller |
| Interface | DVI,VGA,RS232,GPI/O,Power Input |
| Power Consumption | 18W / 22W |
| Operating Voltage | 12VDC / 9-36VDC option |
| Operating Temperature | -20°C - 60°C |
| EMC | CE102 10KHz–10MHz RE102 10KHz–1GHz or MIL-STD-461E |
| Anti-Shock and Vibration | Design Satisfy GJB 150.16A GJB 150.18A or MIL-STD-810 Standard |
