Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | Model：OF650EDCP-4K |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 unit / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160 UHD |
|---|---|---|---|
| Brightness: | 2500 Nits | Power Consumption: | 580W |
| Highlight: | daylight readable lcd display,sunlight readable screen |
||

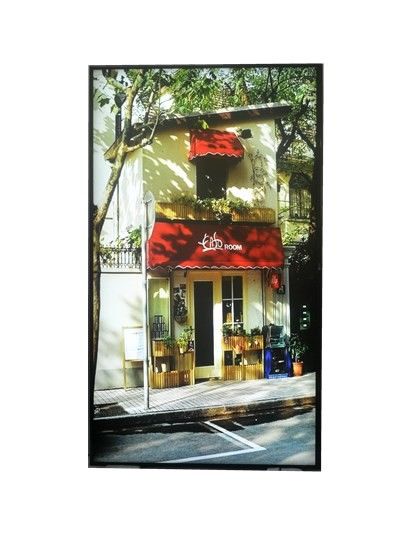

High Bright 2500 nits 65 inch LCD Open Frame 4K Module Model: OF650EDCP-4K
LED Array Backlight Enhanced
Model:OF650EDCP-4K
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
3840 x 2160 Max. Resolution
Aspect Ratio: 9:16 in portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 45o C
Media player box or SBC for content playback
Waterproof IP65 enclosure option
Main Specs of 65 inch 4K High Bright LCD Module
| PANEL TYPE | a-Si active matrix TFT-LCD | ||
| ACTIVE AREA | 803.52 x 1428.48 mm portrait orientation | ||
| NATIVE RESOLUTION | 3840 x 2160 RGB | ||
| PIXEL PITCH | 0.372(H) x 0.372(V) mm | ||
| COLOR | 1.06 B, 10 bit(D) | ||
| HORIZONTAL FREQ. | 244KHz - 280KHz | ||
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) | ||
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced | ||
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 10000:1 | ||
| DIMMING | Auto-dimming by Light Sensor | ||
| VIEWING ANGLE | 89/89/89/89 | ||
| RESPONSE TIME | 5msec typical | ||
| INTERFACE | VGA, HDMI x 3 | ||
| MEDIA PLAYER | Media Player (RK3288) (option) | ||
| REMOTE CONTROL | Support for Full OSD Features | ||
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | ||
| POWER CONSUMPTION | 450W for 2000 nits, 580W for 2500 nits | ||
| STANDBY MODE | 5 Watt or less | ||
| ACCESSORIES | AC Power Cord, Remote Controller | ||
| HDMI, VGA cable x 1 | |||
|
OPERATING
|
Media Player RK3288 Cortex-A17 1.8GHz, 2GB DDR3, 16GB SSD, 4 x USB, 1 x RJ45 | ||
| (option) | 1 x HDMI, 1 X RS232, Android OS 5.1 | ||
|
DIMENSION WEIGHT |
1443.4(H) x 821.6(W) x 65(D) mm, 60 Kg approx. |
||
| Waterproof IP54 Enclosure option | |||
| COOLING | By cooling fans controlled by MCU | ||
| 800W air-conditioner option for IP rated Enclosure | |||
| ENVIRONMENTAL |
Operating Temperature -20-45oC, Wide temp. -30-50oC (option) |
||
| Operating Humidity 10%-85% | |||
| Storage Temperature -30-60oC | |||
| Storage Humidity 5%-90% | |||
| WARRANTY | One year |
