Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | Maxbright |
Certification: | CE |
Model Number: | OF270EDCL |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + carton packaging |
Delivery Time: | 4~5 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100 pcs / month |
Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
---|---|---|---|
Brightness: | 2000 Nits | Power Consumption: | 80 Watt |
High Light: | daylight readable lcd display,sunlight readable lcd module |

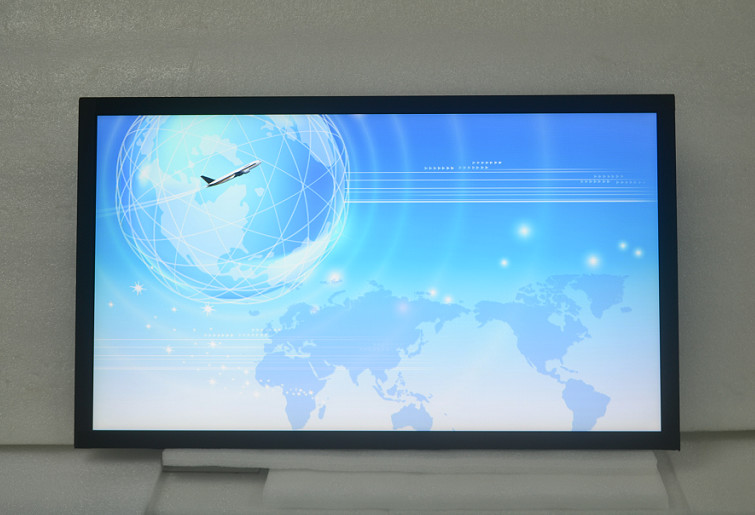

27” High Bright Open Frame LCD Module Model:OF270EDCL
LED Array Direct Type Backlight Enhanced
Model:OF270EDCL
FEATURES:
Bright Active Matrix TFT-LCD Display
1920 x 1080 Max. Resolution
Digital or Analog Interface
Wide Viewing Angles 170 deg (L/R)
2000 nits, LED direct type backlit enhanced
Aspect Ratio: 16:9
Main Specs of 27” High Bright Open Frame Module
PANEL TYPE | a-Si active matrix TFT-LCD |
ACTIVE AREA | 597.6 x 336.15 mm |
NATIVE RESOLUTION | 1920 x 1080, VGA to WUXGA resolution |
PIXEL PITCH | 0.31125(H) x 0.31125(V) mm |
COLOR | 6 bits + Hi-FRC 16.7M |
BACKLKGHT TYPE | LED Array Direct Type Backlight |
BRIGHTNESS | 2000 cd/m2, direct type backlight |
CONTRAST RATIO | 3000:1, |
DIMMING | Dimming by Light Senser |
VIEWING ANGLE | 89/89/89/89 |
RESPONSE TIME | 12msec typical, |
INTERFACE | VGA, AV, S-video, HDMI,DVI |
LIFETIME | 40,000 hrs typical |
OPERATING VOLTAGE | 100-240 VAC |
POWER CONSUMPTION | 80 Watt for whole system |
STANDBY MODE | 3 Watt or less |
ACCESSORIES | AC Power Cord, VGA,HDMI cables |
ENCLOSURE | Metal sheet folded back cover, open frame model |
MODULE DIMENSION WEIGHT |
630(W) x 368.2(H) x 60(D) mm, 15 Kg approx |
MEDIA PLAYER (OPTION) |
media player with 16G SD card, USB update, Ethernet or WiFi option |
TEMPERATURE | Operating: -10-50C, |
Storage Temperature -20-60C | |
HUMIDITY | Operating Humidity 10%-85% |
Storage Humidity 5%-90% | |
WARRANTY | 1 Year |
