Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | OF550EDCP |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100-200 pcs / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080, 3840 X 2160 Available |
|---|---|---|---|
| Brightness: | 2000 - 2500 Nits | Power Consumption: | 320 Watt At 2500 Nits Brightness Level |
| High Light: | sunlight readable screen,sunlight readable lcd module |
||

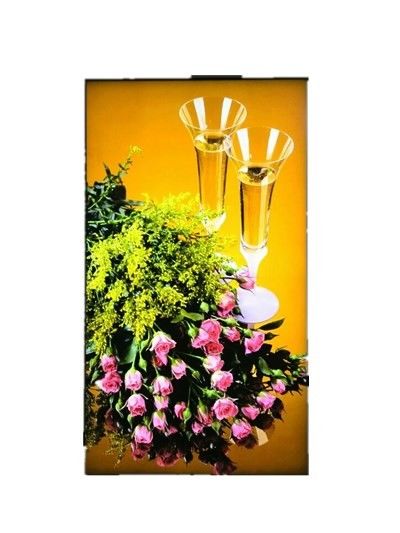

Maxbright 55 inch High Bright Open Frame LCD Module Model: OF550EECP
LED Array Backlight Enhanced
Model:OF550EECP
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
1920 x 1080 Max. Resolution, 3840 x 2160 available
Aspect Ratio: 16:9 in Portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player box or SBC for content playback
Main Specs of 55” High Bright Open Frame module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1209.6 x 680.4 mm landscape orientation |
| NATIVE RESOLUTION | 1920 x 1080 RGB, 3840 x 2160 available |
| PIXEL PITCH | 0.63(H) x 0.63(V) mm |
| COLOR | 1.06 G, 10 bits depth |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1300:1, Dynamic contrast ratio: 6500:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12ms |
| INTERFACE | VGA, HDMI |
| MEDIA PLAYER | Media Player (RK3288) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 2000 nits 260W, 2500 nits 320W |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA, cable x 1 | |
|
OPERATING
|
Media Player RK3288 Quad-core Cortex-A9 1.6GHz, 2GB DDR3, 32-64GB SSD, 4 x USB ports, 1 x RJ45 |
| (option) | 1 x HDMI, 2 X RS232, Android OS 5.1 |
|
DIMENSION(Panel) WEIGHT |
1232.0(H) x 709(W) x 69.5(D) mm, 55 Kg approx |
| COOLING | By cooling fans controlled by MCU |
| 600W Mini air-condition option for IP rated enclosure | |
| ENVIRONMENTAL |
Operating Temperature -20-50C, Wide temp. -30-50C (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
