Place of Origin: | China |
---|---|
Brand Name: | Maxbright |
Certification: | CE |
Model Number: | Model:OF470EDCL-VW |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + carton packaging |
Delivery Time: | 4 - 5 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50 sets / month |
Model:OF470EDCL-VW: | Model:OF470EDCL-VW | ||
---|---|---|---|
Highlight: | super narrow bezel display,ultra thin bezel video wall |

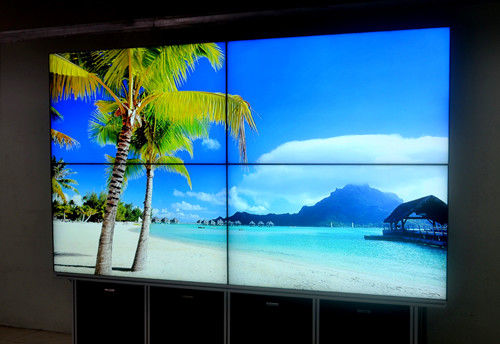

Maxbright HB Video Wall 47" Module
LED Array Backlight Enhanced
Model:OF470EDCL-VW
FEATURES:
Active Matrix TFT-LCD Display, Supper Narrow Bezel
High Brightness 1500 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 16:9, Landscape mode
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -10 ~ 50o C
Built-in Video Wall controller,Multi-input
Special enclosure Design for Video Wall construction
Main Specs of 47” HB Video Wall Module
PANEL TYPE | a-Si active matrix TFT-LCD | |
ACTIVE AREA | 1039.68(H) x 584.82(V) mm, landscape orientation | |
NATIVE RESOLUTION | 1920 x 1080 RGB stripe arrangement | |
PIXEL PITCH | 0.5415(H) x 0.5415(V) mm | |
COLOR | 1.06 Billion, 10 bits | |
HORIZONTAL FREQ. | 65KHz ~ 70KHz | |
VERTICAL FREQ. | 47Hz ~ 53Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) | |
BRIGHTNESS | 1500 cd/m2, LED Backlight Enhanced | |
CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 8000:1 | |
DIMMING | Auto-dimming by Light Sensor for whole system | |
VIEWING ANGLE | 89/89/89/89 | |
RESPONSE TIME | 12 msec typical | |
INTERFACE | VGA, AV, S-video, HDMI | |
CONTROLLER | Video wall controller built-in | |
REMOTE CONTROL | Support for Full OSD Features | |
OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | |
POWER CONSUMPTION | 280W for 1500 nits | |
STANDBY MODE | 5 Watt or less | |
ACCESSORIES | AC Power Cord, Remote Controller | |
DVI, VGA, Composite, RS232 cable x 1 | ||
OPERATING | Video Wall Management software | |
BEZEL A-A | 5.5mm --- 5.5mm | |
DIMENSION WEIGHT |
1044.9(H) x590.0(V) x 100(D) mm for module, 33 Kg approx. include built-in power units |
|
MOUNTING | 500 X400mm VESA STD | |
COOLING | By cooling fans and temp sensor auto controlled | |
ENVIRONMENTAL | Operating Temperature -10-50oC | |
,Wide temp. -30-50oC (option) | ||
Operating Humidity 10%-85% | ||
Storage Temperature -30-60oC | ||
Storage Humidity 5%-90% | ||
WARRANTY | One Year |
