Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | Model: OF550EDCP-VW |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | ||
|---|---|---|---|
| High Light: | super narrow bezel display,ultra thin bezel video wall |
||

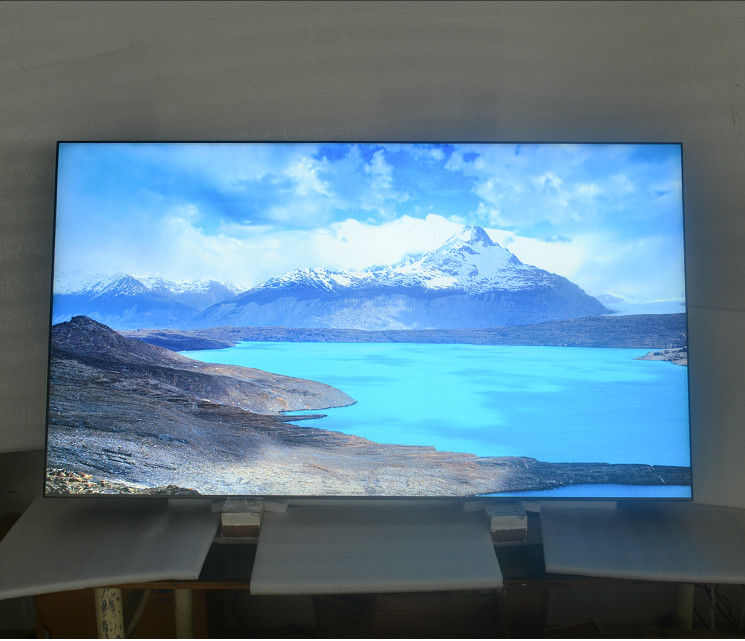

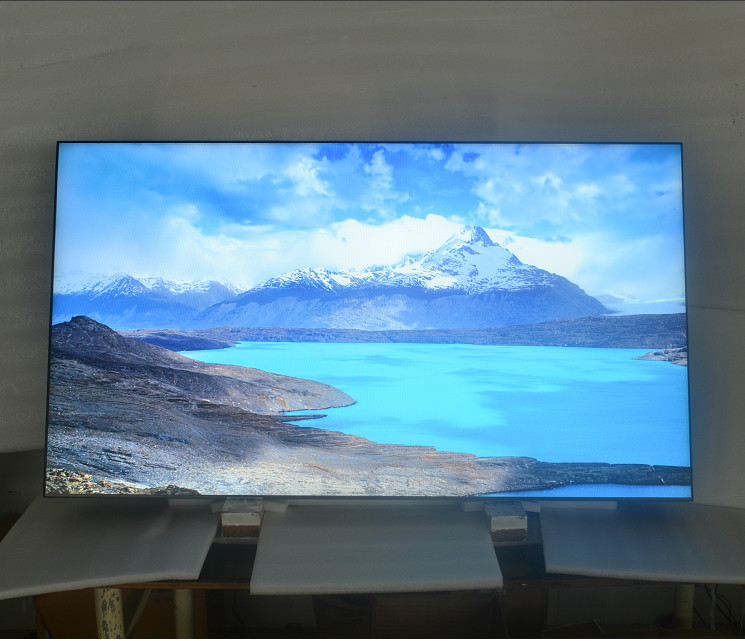

Maxbright 55" High Bright Video Wall Module Model : OF550EDCL-VW
LED array backlight enhanced
Model: OF550EDCL-VW
EATURES:
Active Matrix TFT-LCD Display, Supper Narrow Bezel
High Brightness 2000 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 16:9, Landscape mode
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -10 ～ 50o C
Built-in Video Wall controller,Multi-input
Special enclosure Design for Video Wall construction
Main Specs of 55” HB Video Wall Module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1209.6(H) x 680.4(V) mm, landscape orientation |
| NATIVE RESOLUTION | 1920 x 1080 RGB stripe arrangement |
| PIXEL PITCH | 0.5415(H) x 0.5415(V) mm |
| COLOR | 1.06 Billion, 10 bits |
| HORIZONTAL FREQ. | 65KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 53Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 1800-2000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor for whole system |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12 msec typical |
| INTERFACE | VGA, AV, HDMI, DVI-IN and DVI-OUT |
| CONTROLLER | Video wall controller built-in, Daisy Chain model |
| REMOTE CONTROL | Support for Full OSD Features via RS232-in and RS232-out |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 460W for 1800 nits, 510W for 2000 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, DVI, VGA, RS232 cable x 1 |
| Management software | |
| OPERATING | Video Wall Management software, Win OS model |
| BEZEL A-A | 3.4mm --- 1.9mm, totally 5.3mm |
|
DIMENSION WEIGHT |
1215.2(H) x686.0(V) x 100(D) mm for module, 35 Kg approx. include built-in power units |
| MOUNTING | 600 X400mm VESA STD |
| COOLING | By cooling fans and temp sensor auto controlled |
| ENVIRONMENTAL | Operating Temperature -10-45oC |
| ,Wide temp. -30-50oC (option) | |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
