Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | 17" High Bright Rugged Monitor |
| Certification: | Certificate of Approval |
| Model Number: | Model: M170EEBL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: M170EEBL: | Model: M170EEBL | Resolution: | 1280 X 1024 |
|---|---|---|---|
| Brightness: | 1000 Nits | Aspect Ratio: | 5 : 4 |
| IP Rating: | IP 65 | Working Temperature: | -30 To 60 C |
| High Light: | waterproof lcd monitor,high brightness lcd monitor |
||

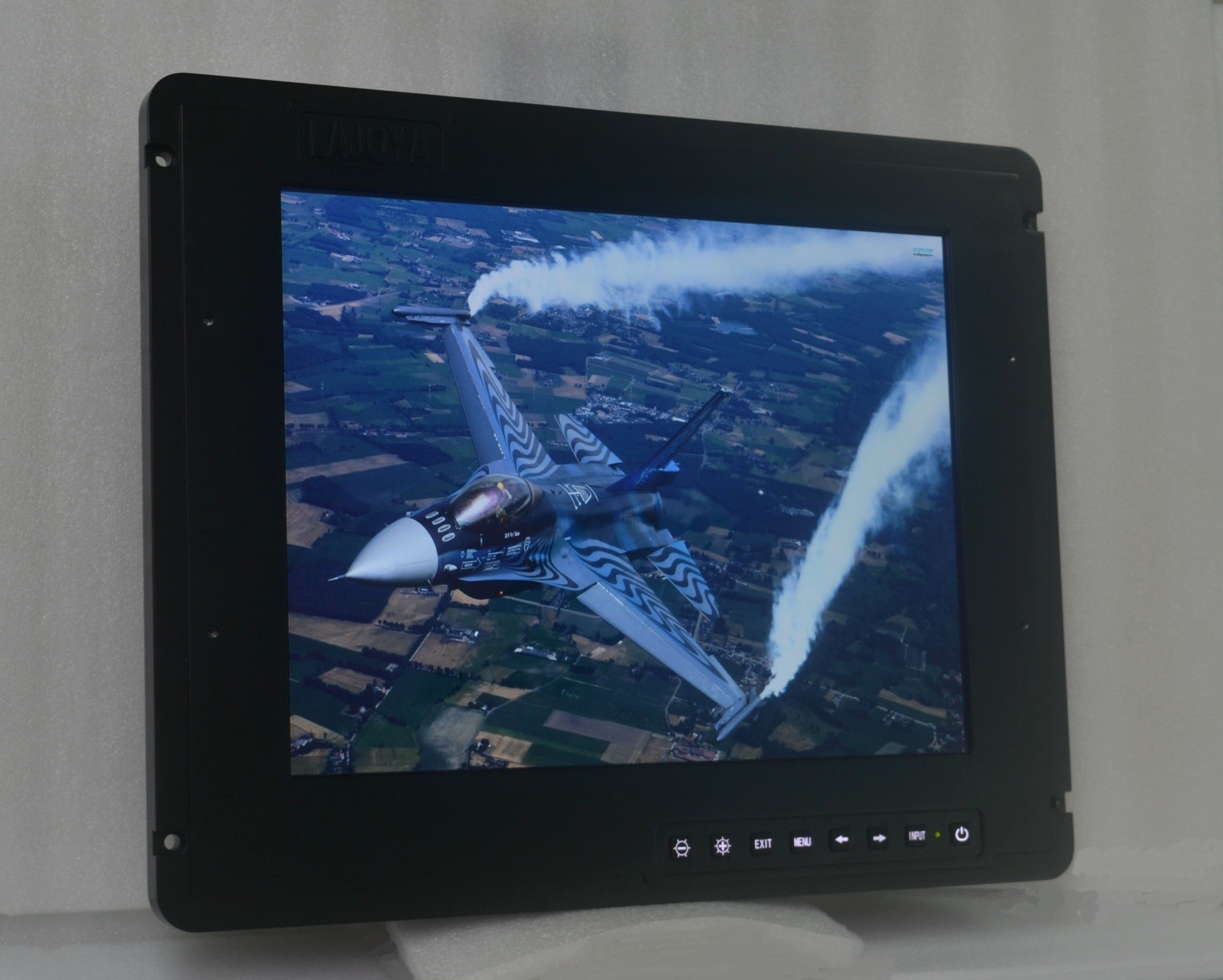

Maxbright 17” HB Rugged Monitor
Edge type LED backlight enhanced
Model: M170EEBL
FEATURES
Bright Active Matrix TFT-LCD Display
1280 x 1024 Max. Resolution
LED backlight enhance 1000 nits
Complete Sunlight readable
Digital or Analog Interface
Wide Viewing Angles 160 deg (L/R)
IP65 waterproof enclosure
Aspect Ratio: 5:4
|
Main Specs of 17” HB Rugged Monitor
|
|
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 337.920 (H) x 270.336(V) mm |
| NATIVE RESOLUTION | 1280 x 1024, VGA to SXGA resolution |
| PIXEL PITCH | 0.264(H) x 0.264(V) mm |
| COLOR | (RGB 6 bit data + FRC data) 16.7 M |
| BACKLKGHT TYPE | LED Direct type |
| BRIGHTNESS | 1000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1000:1, |
| DIMMING RANGE | 1 - 100% auto dimming or by + / - buttons |
| VIEWING ANGLE | 85/85/85/85 |
| RESPONSE TIME | 3.5ms tr, 1.5ms tf |
| INTERFACE | VGA, DVI, AV(PAL/NTSC auto detect) |
| LIFETIME | 45,000 hrs typical |
| OPERATING VOLTAGE | 12VDC input, 100-240VAC option |
| POWER CONSUMPTION | 55 Watt highest 1000 nits brightness level |
| STANDBY MODE | 2-3 Watt or less |
| Reverse Voltage Input Protection | |
| ACCESSORIES | AC Power Cord, VGA and DVI cable |
| ENCLOSURE | Alu block milled front and sheet folded back cover |
| IP65 Waterproof for 6 sides 2mm protection glass | |
| DIMENSION | 482(W) x 376(H) x 80(D) mm |
| WEIGHT | 16 Kg approx |
| ELECTROMAGNETIC | AR glass and ITO coating for EMI(option) |
| SHOCK | 30G half sine wave Z direction 6ms |
| 30G half sine wave X/Y direction 11ms | |
| VIBRATION | 2.5G 5-200HZ X,Y,Z directions 11min |
|
TEMPERATURE (OPTION) |
Operating: -10-55C, Wide temp. -30-60C with internal heater, |
| Storage Temperature -35-65C | |
| HUMIDITY | Operating Humidity 10%-85% |
| Storage Humidity 5%-90% | |
| MECHANICAL INTERFACE | Rack mounted, VESA mount holes on the back |
| WARRANTY | 1 Year |
