Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M650EDCP-DF-SW |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Name: | Double Sided Digital Signage | Resolution: | 3840x2160 4K Max. Resolution |
|---|---|---|---|
| Brightness: | 2500 Nits | Power Consumption: | 100W For 700 Nits Panel, 450W For 2500 Nits Panel |
| Operating Temperature: | -20C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| High Light: | 65 Inch Indoor Digital Signage Display,2500 Nits Indoor Digital Signage Display,65 Inch high brightness digital signage |
||

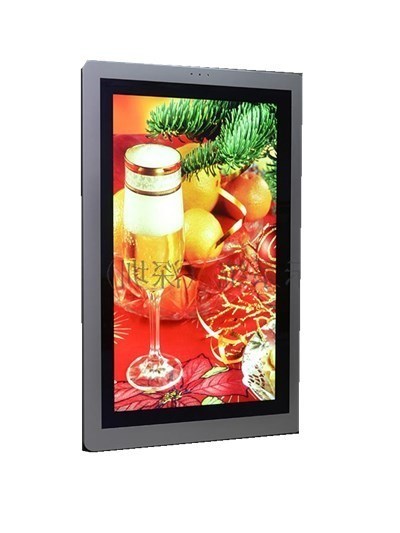

high brightness 65 Inch Indoor Digital Signage Display 2500 Nits For Street Side
LED Array Backlight Enhanced
Model: M650EDCP-DF-SW
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500 nits + 700 nits
3840 x 2160 Max. QWUXGA Resolution
Aspect Ratio: 9:16 in portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Waterproof and Fashion Design
Media player box or mini PC Built-in (option)
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 803.52 x 1428.48 mm portrait orientation |
| NATIVE RESOLUTION | 2160 x 3840 QWUXGA Max Resolution |
| PIXEL PITCH | 0.372(H) x 0.372(V) mm |
| COLOR | 1.073 G, 10 bits |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL) |
| BRIGHTNESS | 2500 cd/m2 for street side, 500 cd/m2 for store side |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 8msec typical |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288 Android OS) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 80W for 500 nits panel, 450W for 2500 nits panel |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: D2550 Dual Core 1.8GHz, 4GB DDR2 |
| (option) | 2.5” HD, 5 x USB ports, 1 x RJ45 |
| DIMENSION |
1515(H) x 839(W) x 125(D) mm, Narrow Bezel, L / R / Bottom: 18mm, Up: 68mm |
| WEIGHT | 75 Kg approx |
| Waterproof IP54 Enclosure option | |
| COOLING | By cooling fans controlled by MCU |
| INSTALLATION | Hang from Top or by Floor Stand |
| ENVIRONMENTAL |
Operating Temperature -10-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
Application Of Outdoor Digital Signage
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
Advantage Of Indoor Digital Signage
Sun Readable
1. High brightness, high definition full HD lcd panel;
2. Anti-refiective glass with less than 3%low refiectivity;
3. Low humidity and constant temperature inner system enviroment allows LCD panel to perform optimally;
4. With light sensor, automatically adjust the brightness, environmental friendly and maximum energy saving.
Waterproof
1. Unique patented sealing technology;
2. Outdoor security anti-corrosion more than 8 years;
3. IP65 protection grade enclosure dust can not enter into the display under the 20 mbar pression, harmless when water jetting in ever direction.
