Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T550EDCP-DF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Brightness: | 2500 -3000 Nits |
|---|---|---|---|
| Operating Voltage: | AC100~240V 50 /60 HZ | Application: | Outdoor Advertising Publication, Interactive Touch, Info Search |
| Input Voltage: | AC100~240V 50 /60 HZ | Resolution: | 1920 X 1080RGB, 3840 X 2160(4K) |
| High Light: | Outdoor Digital Totem IP65,info search Outdoor Digital Totem,2500 nits Double Sided LCD Display |
||

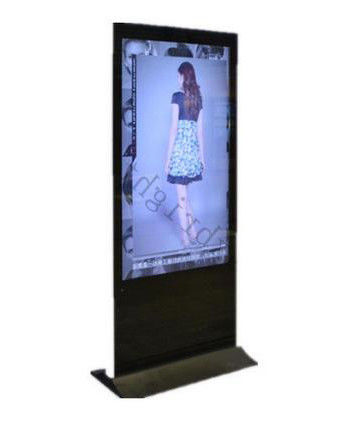

Maxbright 55 inch Outdoor Dual Face High Bright IP65 Advertising Totem Model: T550EDCP-DF
LED array Backlight Enhanced
Model: T550EDCP-DF
Air-conditioner cooling for harsh environment option
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 680.4 x 1209.6 mm portrait for both sides |
| NATIVE RESOLUTION | 1080 x 1920 RGB, 4K model available |
| PIXEL PITCH | 0.21(H) x 0.63(V) mm |
| COLOR | 1.073 G, 10 bits depth |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2000~2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1300:1, Dynamic contrast ratio: 6500:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 4.5ms |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK 3288 CPU) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 450W(FHD) / 550W(4K) |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: NDiS-1660C, 2GB DDR2, 4GB option |
| (option) | 2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi |
| 3G module option | |
|
DIMENSION WEIGHT |
2100(H) x 960(W) x 310(D) mm w/o Air-Con, 245 Kg approx. |
| ENCLOSURE | Iron sheet with outdoor powder painting |
| COOLING | By cooling fans controlled by MCU for outdoor |
|
ENVIRONMENTAL
|
Operating Temperature -20-50C, Wide temp. -30-50C (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-90% | |
| WARRANTY |
One year, limited for 2nd year |
Feature Of Outdoor LCD Digital Signage
1. Comfortable 3D vision
- Impressive 3D experience, obvious pop-out effect and adjustable depth of field, ensuring comfortable viewing.
2. Superior lenticular lens technology
- Independently developed lens film with world-leading quality offering ultrahigh precision and high transmittance.
3. Precise adhesion
- High-precision aligned full adhesion technology, ensuring quality 3D effect with naked eyes.
4. Superior image quality guaranteed with algorithms
- World-leading 3D image interleaving algorithm and multi-view conversion algorithm.
5. Clear and fine image of the digital signage screen
- Ultra-HD 4K panel in combination with 3D image processing technology to avoid double image.
6. Ultra-wide angle of view for watching from multiple points
- Ultra-wide angle of view and multiple points of view ensuring multiple people to experience the glasses-free 3D effect.
Application Of Outdoor LCD Digital Signage
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
