Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T430EDCP-DF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Brightness: | 2000 - 2500 Nits | Operating Voltage: | AC100~240V 50 /60 HZ |
|---|---|---|---|
| Operating Temperature: | -30 --- 50 Deg C | Power Comsumption: | 460W For Dual Face Whole Unit |
| Input Voltage: | AC100~240V 50 /60 HZ | Resolution: | 1920 X 1080 RGB |
| High Light: | 43" Outdoor Advertising Kiosk,outdoor advertising kiosk IP65,Dual Face digital advertising kiosk |
||

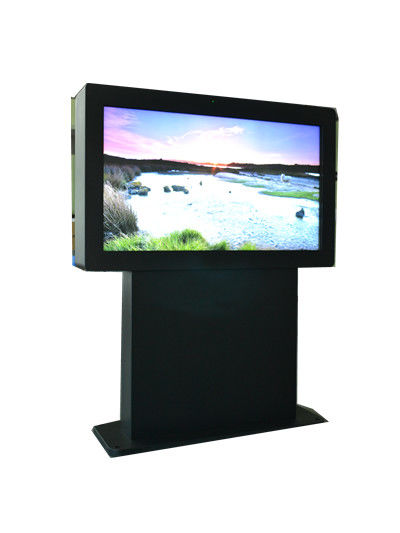

Maxbright 43 inch Outdoor Dual Face High Bright IP65 Advertising Kiosk Model: T320EDCP-DF
LED array Backlight Enhanced
Model: T430EDCP-DF
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000 - 2500 nits, Sunlight Viewable
WUXGA 1920 x 1080 RGB
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player box or mini PC for content playback
Waterproof IP65 enclosure
| PANEL TYPE | a-Si active matrix TFT-LCD | ||
| ACTIVE AREA | 941.184 x 529.416 mm in portrait orientation | ||
| NATIVE RESOLUTION | 1080 x 1920 RGB | ||
| PIXEL PITCH | 0.4902(H) x 0.4902(V) mm | ||
| COLOR | 16.7 Million, 8 bits | ||
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz | ||
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) | ||
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced | ||
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 10000:1 | ||
| DIMMING | Auto-dimming by Light Sensor | ||
| VIEWING ANGLE | 89/89/89/89 | ||
| RESPONSE TIME | 12msec typical | ||
| INTERFACE | VGA,, HDMI x 2 | ||
| MEDIA PLAYER | Media Player (RK3288 CPU) (option) | ||
| REMOTE CONTROL | Support for Full OSD Features | ||
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | ||
| POWER CONSUMPTION | 2500 nits: 460W for whole unit | ||
| STANDBY MODE | 10 Watt or less | ||
| ACCESSORIES | AC Power Cord, Remote Controller | ||
| HDMI, VGA cable x 2 | |||
| OPERATING | Mini PC: D2550 Dual Core 1.86GHz, 2GB DDR2 | ||
| (option) | 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option) | ||
| TOUCH | 10 points PCAP, or metal mesh option | ||
|
DIMENSION WEIGHT |
1820(H) x 690(W) x 300(D) mm, (w/o basement) 125 Kg approx (without air-con) |
||
| Waterproof IP65 Enclosure | |||
| COOLING | By cooling fans controlled by MCU for outdoor | ||
| 1200W air-conditioner option for harsh outdoor | |||
| FRONT PROTECTION | 3+3 AR vandal glass or 6mm AR vandal glass | ||
|
ENVIRONMENTAL OPTION |
Operating Temperature -20-45oC, Wide temp. -30-50oC (with cool/warm air-con) |
||
| Operating Humidity 10%-85% | |||
| Storage Temperature -30-60oC | |||
| Storage Humidity 5%-90% | |||
| WARRANTY | One Year |
Advantage Of Outdoor LCD Digital Signage
Sun Readable
1. High brightness, high definition full HD lcd panel;
2. Anti-refiective glass with less than 3%low refiectivity;
3. Low humidity and constant temperature inner system enviroment allows LCD panel to perform optimally;
4. With light sensor, automatically adjust the brightness, environmental friendly and maximum energy saving.
Waterproof
1. Unique patented sealing technology;
2. Outdoor security anti-corrosion more than 8 years;
3. IP65 protection grade enclosure dust can not enter into the display under the 20 mbar pression, harmless when water jetting in ever direction.
