Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T550EDCP-DF |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Brightness: | 2500 Nits | Operating Temperature: | -30 --- 60 Deg C |
|---|---|---|---|
| Power Comsumption: | 450 W At 2500 Nits Bright Level | Application: | Outdoor Advertising Publication, Interactive Touch, Info Search |
| Touch Screen: | 10 Points Projected CAP Touch Option | Resolution: | 1920 X 1080, 3840 X 2160 |
| High Light: | High Brightness Double Sided Digital Signage,LCD Totem Double Sided Digital Signage,55 Inch outdoor digital signage totem |
||

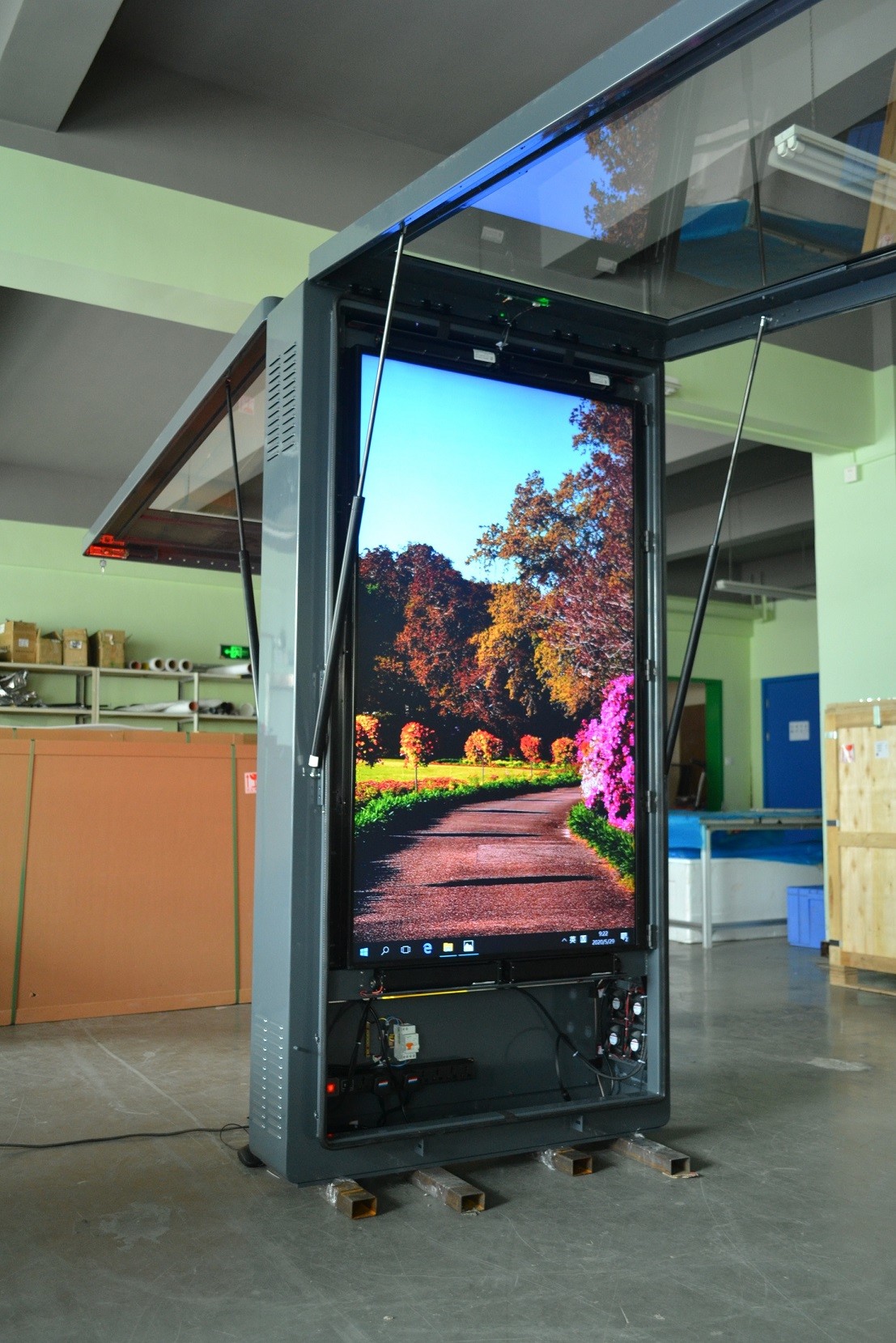

High Brightness 55 inch 2K Double Sided Digital Signage LCD Totem
Safety protection:
Corrosion protection: High strength galvanized steel
Explosion-proof: AR tempered glass protection, explosion-proof, anti-reflection;
Waterproof: compound sealing strip, multi-angle no water.
Advantages of outdoor LCD digital signage
The sun can be read
1. Fresh HD LCD panel with high brightness, high definition and picture quality;
2. Anti-reflective glass with a reflectivity lower than 3% has a low reflectivity;
3. The internal system environment with low humidity and constant temperature enables the LCD panel to have the best performance;
4. Built-in automatic photosensitive probe, screen brightness can be automatically adjusted according to the ambient brightness, energy saving.
Multiple scenarios:
Supermarket, enterprise, residential property, traffic arteries, airport stations, public entertainment, gas stations, various venues, outdoor streets, community parks, etc.
| PANEL TYPE | 55” a-Si active matrix TFT-LCD |
| ACTIVE AREA | 680.4 x 1209.6 mm portrait for both sides |
| NATIVE RESOLUTION | 1080 x 1920 RGB, 4K model available |
| PIXEL PITCH | 0.21(H) x 0.63(V) mm |
| COLOR | 1.073 G, 10 bits depth |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1300:1, Dynamic contrast ratio: 6500:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 4.5ms |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK 3288 CPU) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | 100 ~ 240VAC 60/50Hz |
| POWER CONSUMPTION | 900W at 2500 nits level for two sides w/o air-con |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: NDiS-1660C, 2GB DDR2, 4GB option |
| (option) | 2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi |
| 3G module option | |
|
DIMENSION WEIGHT |
2100(H) x 960(W) x 310(D) mm w/o Air-Con, 245 Kg approx. |
| ENCLOSURE | Iron sheet with outdoor powder painting |
| COOLING | By cooling fans controlled by MCU for outdoor |
|
ENVIRONMENTAL
|
Operating Temperature -20-50C, Wide temp. -30-50C (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-90% | |
| WARRANTY | One year, limited for 2nd year |
Intelligent diurnal mode
The day is clear and the night is not dazzling
Day: Still clear in the sun
Night: the picture is automatically adjusted by optical fiber, soft and not dazzling
Extreme Temperature
1. Intelligent air conditioner cooling system integrated cooling and heating;
2. Unique patented intelligent temperature control technology;
3. Work stably and efficiently in wide temperature range from -30°C to +60°C;
4. housing enclosure made of non-oxidizing material zinc coted steel.
Application Of Outdoor LCD Digital Signage
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
