Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M320EDCP-i |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / month |
| Panel: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Brightness: | 2000-2500 Cd/m2, LED Backlight Enhanced | Power Consumption: | 135W |
| Operating Voltage: | 100 - 240 VAC 50/60Hz | PIXEL PITCH: | 0.36375(H) X 0.36375(V) Mm |
| High Light: | 32 Inch Outdoor Digital Signage Displays,2500 nits Outdoor Digital Signage Displays,60Hz outdoor lcd advertising display |
||

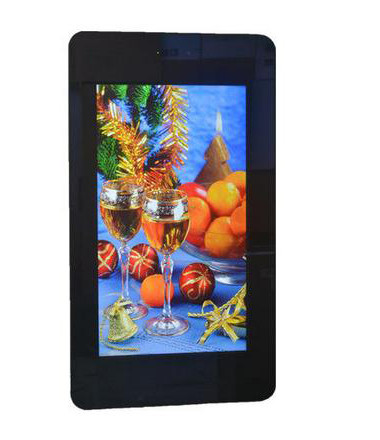

2500 nits 32 Inches Outdoor Digital Signage Displays E-Poster
Maxbright 32" High Brightness Outdoor LCD E-poster Model:M320EDCP-i
LED array backlight enhanced
Model:M320EDCP-i
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 9:16 in Portrait mode enabled
Wide Viewing Angles 178 deg. (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player or mini-PC for content playback
Waterproof IP54 enclosure option
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 392.85 x 698.4 mm portrait orientation |
| NATIVE RESOLUTION | 1080 x 1920 RGB |
| PIXEL PITCH | 0.36375(H) x 0.36375(V) mm |
| COLOR | 16.7 Million, 8 bits |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 10 msec typical |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288 Android OS ) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | 100 ~ 240VAC 50/60Hz |
| POWER CONSUMPTION | 100W for 2000 nits, 135W for 2500 nits |
| STANDBY MODE | 3 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
|
OPERATING (option) |
Mini PC: D2550 Dual-core 1.86GHz, 2GB DDR3, 32-64GB SSD, 4 x USB ports, 1 x RJ45, 1 x HDMI, 2 x RS232, Windows OS |
|
DIMENSION WEIGHT |
1041(H) x 520(W) x 140(D)mm 33 Kg approx |
| Waterproof IP54 Enclosure | |
| COOLING | By cooling fans controlled by MCU |
| ENVIRONMENTAL |
Operating Temperature -20-50oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
There is a built-in AC interface inside enclosure for internal player. Also in order to lower the inside temperature, we add several fans inside, with patent design, air flow go inside from bottom side and go out from top side, the heat generated high brightness backlight and sunshine then can be taken out by such airflow design, this is a cost-effect competitive design.
It has a camera inbuilt option as well, with the help of software, user can know how many visitors using the touch screen and what gender they are and what information they're most interested in, with all these data, advertising company can help business partners to target their audience quite easily.
Displaying orientation can be vertical or horizontal, sample order is also welcome for low cost project starting to avoid higher cost bulk order. Besides anti-glare or AR vandal glass, anti-UV film option could be offered on the front protective glass to make screen black spots free even operating under strong direct sunshine.
