Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T650EDCP-4K |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood case packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Panel Type: | 65" Digital Display | Resolution: | 3840 X 2160 UHD |
|---|---|---|---|
| Brightness: | 2000nits-2500 Nits | Power Consumption: | 430W~540W |
| Operating Temperature: | -30C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| High Light: | 2000nits Outdoor Digital Signage Totem,IP65 Outdoor Digital Signage Totem,2000nits digital totem display |
||

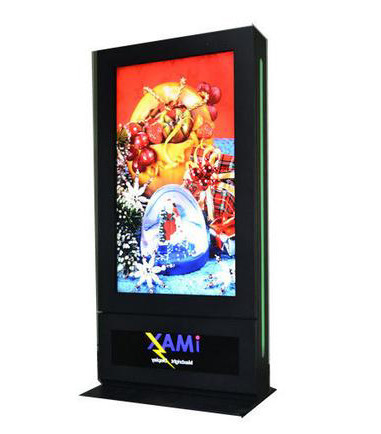

Maxbright 65" High Bright 4K UHD Outdoor Digital Signage Totem Model : T650EDCP-4K
LED Array Backlight Enhanced
Model: T650EDCP-4K
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
3840 x 2160 QWUXGA Max. 4K Resolution
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player box or mini Ind. PC for content playback
Waterproof IP65 enclosure
Application Of Outdoor Digital Signage Totem
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
| PANEL TYPE | a-Si active matrix TFT-LCD | ||
| ACTIVE AREA | 803.52 x 1428.48 mm in portrait orientation | ||
| NATIVE RESOLUTION | 2160 x 3840 RGB | ||
| PIXEL PITCH | 0.372(H) x 0.372(V) mm | ||
| COLOR | 1.07 Billon color, 10 bits | ||
| HORIZONTAL FREQ. | 244KHz ~ 280KHz | ||
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) | ||
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced | ||
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 10000:1 | ||
| DIMMING | Auto-dimming by Light Sensor | ||
| VIEWING ANGLE | 89/89/89/89 | ||
| RESPONSE TIME | 5msec typical | ||
| INTERFACE | VGA, HDMI x 2 | ||
| MEDIA PLAYER | Media Player (RK3399 CPU) (option) | ||
| REMOTE CONTROL | Support for Full OSD Features | ||
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz | ||
| POWER CONSUMPTION | 430W for 2000 nits, 540W for 2500 nits | ||
| STANDBY MODE | 5 Watt or less | ||
| ACCESSORIES | AC Power Cord, Remote Controller | ||
| HDMI, VGA, Composite, S-Video cable x 1 | |||
| OPERATING | Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2 | ||
| (option) | 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option) | ||
| TOUCH | 10 points PCAP, or metal mesh or Nano option | ||
|
DIMENSION WEIGHT |
2000(H) x 1110(W) x 260(D) mm, (without air-con) 185 Kg approx (without air-con) |
||
| Waterproof IP65 Enclosure | |||
| COOLING | By cooling fans controlled by MCU for outdoor | ||
| 600W air-conditioner option for harsh outdoor | |||
| FRONT PROTECTION | 3+3 AR vandal glass or 6mm AR vandal glass | ||
|
ENVIRONMENTAL OPTION |
Operating Temperature -20-50oC, Wide temp. -30-50oC (with cool/warm air-con) |
||
| Operating Humidity 10%-85% | |||
| Storage Temperature -30-60oC | |||
| Storage Humidity 5%-90% | |||
| WARRANTY | One Year, extended 2 or 3 years available |
