Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T490EDCP-DF |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Product Name: | IP65 Outdoor 49 Inch High Bright Double Sided LCD Digital Signage Totem | Size: | 49" Dual Face |
|---|---|---|---|
| Resolution (pixel): | 1080 X 1920 RGB, 3840 X 2160 RGB(4K) Model Available | Brightness: | 2500-3000cd/m2 |
| Response Time: | 4.5ms | Pixel Pitch: | 0.55926(H) X 0.55926(V) Mm |
| Interface: | VGA, HDMI X 2 | Display Area (mm): | 632.5 X 1096.2 Mm |
| High Light: | 3000nits Double Sided LCD Screen,IP65 49 Inch Double Sided LCD Screen,3000nits Outdoor Double Sided LCD Screen |
||

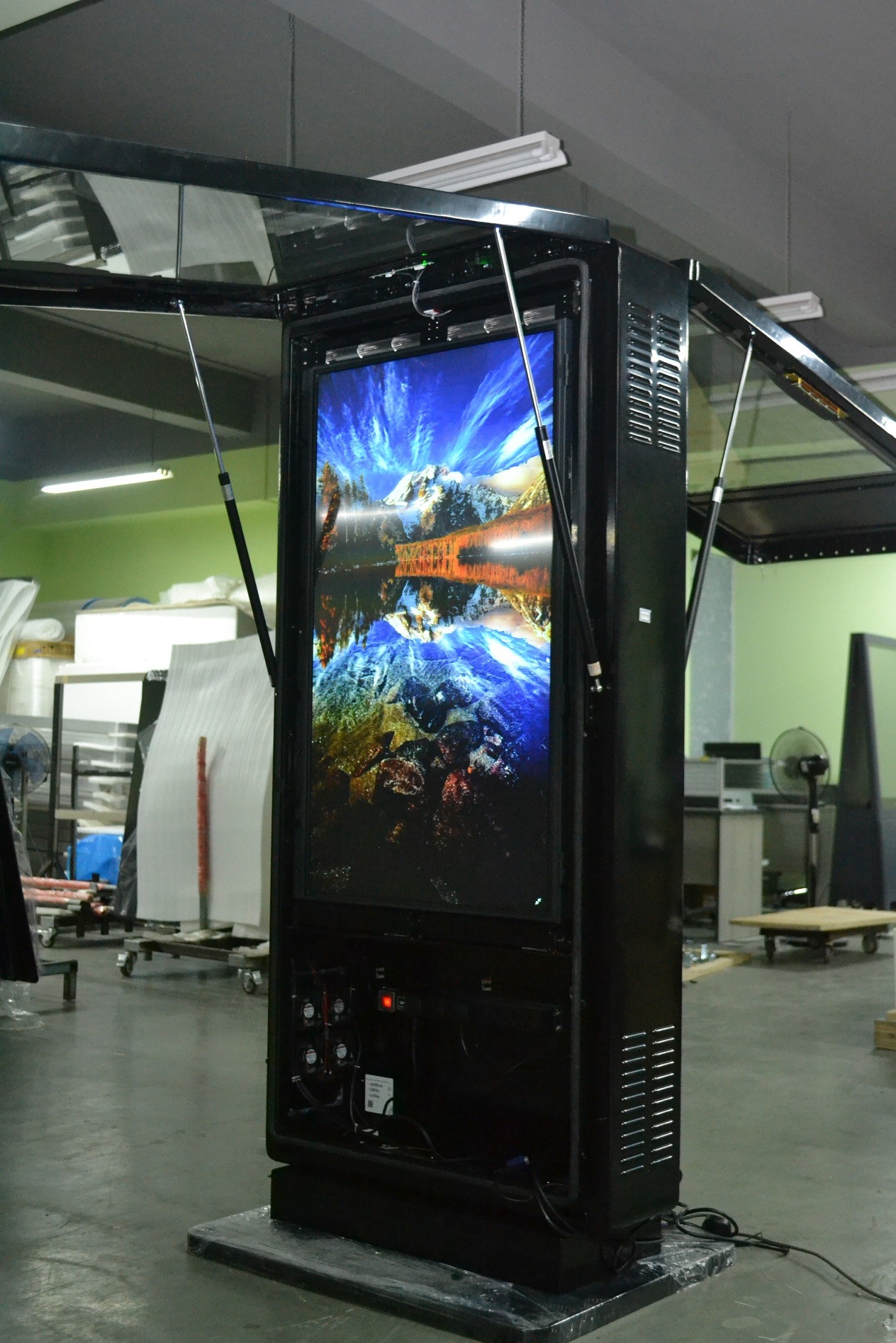

Outdoor IP65 49 Inch 3000nits Double Sided LCD Screen
Quick Detail Of Outdoor LCD Digital Signage
1. Professional Outdoor kiosk with excellent fasion design;
2. Industrial grade 49” brand new LG original panel with LED backlight;
3. Fully meet outdoor IP65 standard application;
4. 49 Inch High Brightness Dual face Outdoor LCD Digital Signage
5. Support Intelligent fans ventilating controlled by MCU, ensure reliable running;
6. Support anti-reflection glass, make sure best view experience;
7. Support high brightness of 2500-3000 nits, ensure readable under sunlight;
8. Built in auto-temperature control system, can turn off the kiosk automatically;
9. Intelligent air-looping system, can protect the kiosk panel against the “blackout” issue;
Product Features:
1. Automatic brightness control: automatically adjust the brightness of the screen according to the changes of outdoor environment light, bright and visible under the sunlight during the day, soft and gorgeous at night, energy saving and environmental friendly.
2. Intelligent temperature control: According to the change of internal environment temperature, intelligent start fans or air conditioner to dissipate heat. When the temperature reaches above 30℃, the fans or air conditioner will start to dissipate heat automatically. When the temperature is below 20℃, the cooling fans or air conditioner will be automatically stopped.
3. High temperature protection function: When casing internal ambient temperature is above 60℃, the protection function will automatically start, automatically reducing the brightness to around 500 nits; When the internal ambient temperature is below 40℃, the brightness will be automatically restored to the appropriate viewing brightness.
4. Low-temperature protection: When the internal environment temperature is lower than -10℃, the heating function will be started automatically; When the internal temperature is above 5℃, the heating function will be stopped automatically. (This option is suitable for harsh outdoor working environment below -20℃)
5, intelligent remote monitoring function: through RS232 communication interface and network connection, real-time device security and working status data upload, remote monitoring of the main parts of the machine is working properly, timely find the device security or any failure, reduce maintenance time and cost, improve maintenance efficiency.
Specification Of Outdoor LCD Digital Signage
| PANEL TYPE | 2 x 49" a-Si active matrix TFT-LCD |
| ACTIVE AREA | 632.5 x 1096.2 mm in portrait orientation |
| NATIVE RESOLUTION | 1080 x 1920 RGB, 3840 x 2160 RGB(4K) model available |
| PIXEL PITCH | 0.55926(H) x 0.55926(V) mm |
| COLOR | 16.7 Million, 8 bits |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2500-3000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 10000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 4.5ms |
| INTERFACE | VGA,, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288 CPU) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 2500-3000 nits: 280W for one panel |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 2 | |
| OPERATING | Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2 |
| (option) | 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option) |
| TOUCH | 10 points PCAP, or metal mesh option |
|
DIMENSION WEIGHT |
1940(H) x 870(W) x 320(D) mm, (w/o basement) 285 Kg approx (without air-con) |
| Waterproof IP65 Enclosure | |
| COOLING | By cooling fans controlled by MCU for outdoor |
| 600W air-conditioner option for harsh outdoor | |
| FRONT PROTECTION | 3+3 AR vandal glass or 6mm AR vandal glass |
|
ENVIRONMENTAL OPTION |
Operating Temperature -20-45oC, Wide temp. -30-50oC (with cool/warm air-con) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
Application Of Outdoor LCD Digital Signage
1. Public Places: Subway, Airport, Bus Stop, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
Advantage Of Outdoor LCD Digital Signage
Sunlight Readable
1. High brightness, high definition full HD LCD panel;
2. Anti-refiective glass with less than 3% low refiectivity;
3. Low humidity and constant temperature inner system environment allows LCD panel to perform optimally;
4. With light sensor, automatically adjust the brightness, environmental friendly and maximum energy saving.
Waterproof
1. Unique patented sealing technology;
2. Outdoor security anti-corrosion more than 8 years;
3. IP65 protection grade enclosure, dust can not enter into the display under the 20 mbar pression, harmless when water jetting in all directions.
Extreme Temperature
Why we were chosen:
1. More than 10 years of professional experience in outdoor digital signage manufacturing.
2. LCD items from 6.5" to 86" in various brightness can be customized according to your specific requirements.
3. The minimum order quantity can meet all your requirements.
4. Modes of transportation: International express, air transportation and sea transportation.
5. Warranty: 1 year warranty, lifetime maintenance.
