Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T650EDCL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 4-5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets / month |
| High Light: | outdoor digital signage kiosk,digital display touch screen kiosk |
||
|---|---|---|---|

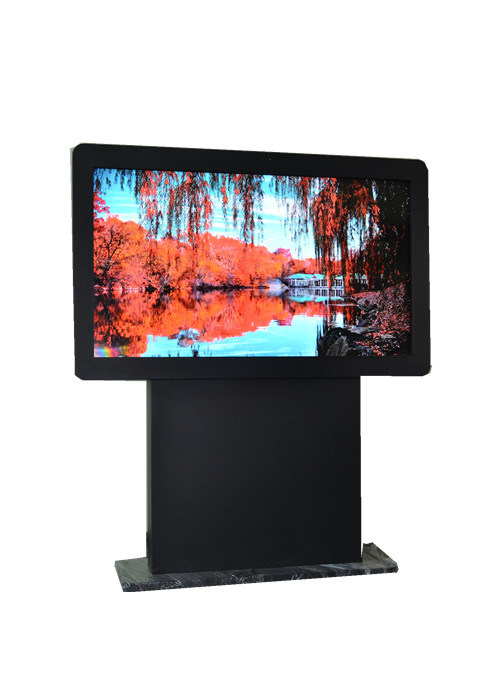

Maxbright 65" High Bright Outdoor 4K Digital Signage Display
LED Array Backlight Enhanced
Model : T650EDCL
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500-3000 nits, Sunlight Viewable
WUXGA 3840 x 2160 Max. 4K Resolution
Aspect Ratio: 16 :9 in landscape mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Industrial mini PC for content playback
Waterproof IP65 enclosure
|
PANEL TYPE |
a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1428.5 x 803.5 mm landscape orientation |
| NATIVE RESOLUTION | 2160 x 3840 RGB and White |
| PIXEL PITCH | 0.429(H) x 0.429(V) mm |
| COLORS | 1.07 Billion, 10 bits |
| HORIZONTAL FREQ. | 110KHz ~ 139.5KHz |
| VERTICAL FREQ. | 98Hz ~ 122Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500-3000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 10000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 6msec typical |
| INTERFACE | VGA, HDMI, or DVI |
| MEDIA PLAYER | Media Player (RK 3288) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 860 W at Max. Brightness Level |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: i3 CPU 4GB DDR2 |
| (option) | 500G HDD, 5 x USB ports, 1 x RJ45, WiFi (option) |
|
DIMENSION NET WEIGHT |
2250(H) x 1260(W) x 240(D) mm, (without air-con) 245 Kg approx (without air-con) |
| Waterproof IP65 Enclosure option | |
| COOLING | By cooling fans controlled by MCU |
| 1500W air-conditioner for harsh outdoor(option) | |
|
ENVIRONMENTAL OPTION |
Operating Temperature -20-45oC, Wide temp. -30-50oC (with cool/warm air-con) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year STD, two years option |
