Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T650EDCP-DF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Type: | A-Si Active Matrix TFT-LCD | Brightness: | 2500 -3000 Nits |
|---|---|---|---|
| Operating Voltage: | AC100~240V 50 /60 HZ | Operating Temperature: | -30 --- 50 Deg C |
| Power Comsumption: | 650W For One Panel, 130W For Two Panels | Application: | Outdoor Advertising Publication, Interactive Touch, Info Search |
| Input Voltage: | AC100~240V 50 /60 HZ | Resolution: | 3840 X 2160 UHD |
| High Light: | digital display totem,double sided lcd screen |
||

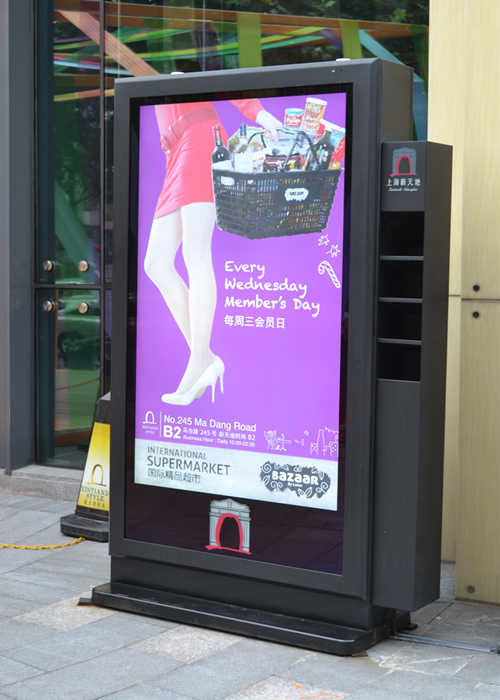

Maxbright 65 inch Outdoor Dual Face High Bright IP65 Advertising Totem Model: T650EDCP-DF
LED Array Backlight Enhanced
Model: T650EDCP-DF
FEATURES:
Active Matrix TFT-LCD PD panel
Dual face 65” Portrait display
High Brightness 2500 nits, Sunlight Viewable
3840 x 2160 QWUXGA Max. Resolution
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30～50o C
Media player box or mini PC for content display
Air-conditioner cooling for harsh environment option
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1428.5 x 803.5 mm portrait for both sides |
| NATIVE RESOLUTION | 3840 x 2160 QWUXGA Max. Resolution |
| PIXEL PITCH | 0.372(H) x 0.372(V) mm |
| COLOR | 1.073 Billon, 10 bits depth |
| HORIZONTAL FREQ. | 244KHz ~ 280KHz |
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500~3000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1400:1, Dynamic contrast ratio: 6500:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 5msec typical |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK 3288 CPU) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 1300W at 2500 nits level for two sides w/o air-con |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: NDiS-1660C, 2GB DDR2, 4GB option |
| (option) | 2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi |
| 3G module option | |
|
DIMENSION WEIGHT |
2200(H) x 1110(W) x 320(D) mm w/o Air-Con, 285 Kg approx. |
| ENCLOSURE | Iron sheet with outdoor powder painting |
| COOLING | By cooling fans controlled by MCU for outdoor |
|
ENVIRONMENTAL
|
Operating Temperature -20-50C, Wide temp. -30-50C (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-90% | |
| WARRANTY |
One year, limited for 2nd year |
