Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M430EDCP-DF-SW |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Brightness: | 2500 Nits、700 Nits | Power Consumption: | 340W |
| Operating Temperature: | -30C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| High Light: | touch screen digital signage,floor standing digital signage |
||

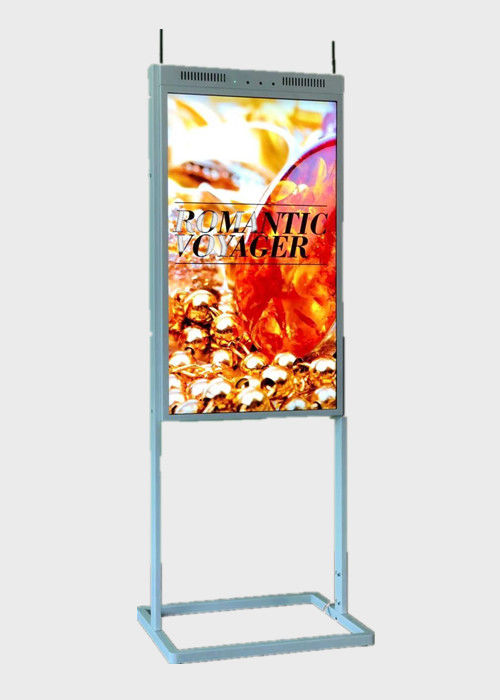

Maxbright 43 inch Dual Face High Bright Digital Signage for Store Window Advertising M430EDCP-DF-SW
LED Array Backlight Enhanced
Model: M430EDCP-DF-SW
Keys FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500 nits/700 nits, Dual Face
1920 x 1080 Max. Resolution
Aspect Ratio: 16:9 in Portrait orientation
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -20 ～ 50o C
Android player or mini PC for content playback
Waterproof IP54 enclosure option
| PANEL TYPE |
a-Si active matrix TFT-LCD |
| ACTIVE AREA |
941.184(H) x 529.416(V)mm |
| NATIVE RESOLUTION | 1920 x 1080 RGB |
| PIXEL PITCH | 0.4902(H) x 0.4902(V) mm |
| COLOR | 16.7 M, 8 bits depth |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500 cd/m2 for Window face, 700 cd/ m2 for in shop face |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor 100% to 10% |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12 msec typical |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288 Quad-core) 2G/8-32G memory |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 70W for 700 nits panel, 300W for 2500 nits panel |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
|
OPERATING (option)
|
Media Player RK3288 Quad-core Cortex-A17 1.8GHz 2GB DDR3, 32-64GB SD, 4 x USB ports, 1 x RJ45, 1 x HDMI, 2 X RS232, Android OS 5.1 |
| TOUCH SCREEN | 10 points PCAP Touch (option) |
|
DIMENSION WEIGHT |
1047(H) x 574(W) x 100(D) mm, 45 Kg net weight |
| ENCLOSURE | Iron Sheet folded, Outdoor Powder Coating, |
| Hang mount or with floor stand | |
| COOLING | Fans cooling controlled by MCU |
|
ENVIRONMENTAL
|
Operating Temperature -10-45oC, Wide temp. -20-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
