Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M750EDCL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 5~6 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / month |
| Panel: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160 RGB (4K) UHD |
|---|---|---|---|
| Brightness: | 2500 - 3000 Nits | Power Consumption: | 860W |
| Operating Voltage: | 100 - 240 VAC 50/60Hz | Operating Temperature: | -20C -- 50C |
| High Light: | outdoor lcd advertising display,outdoor digital advertising display screens |
||

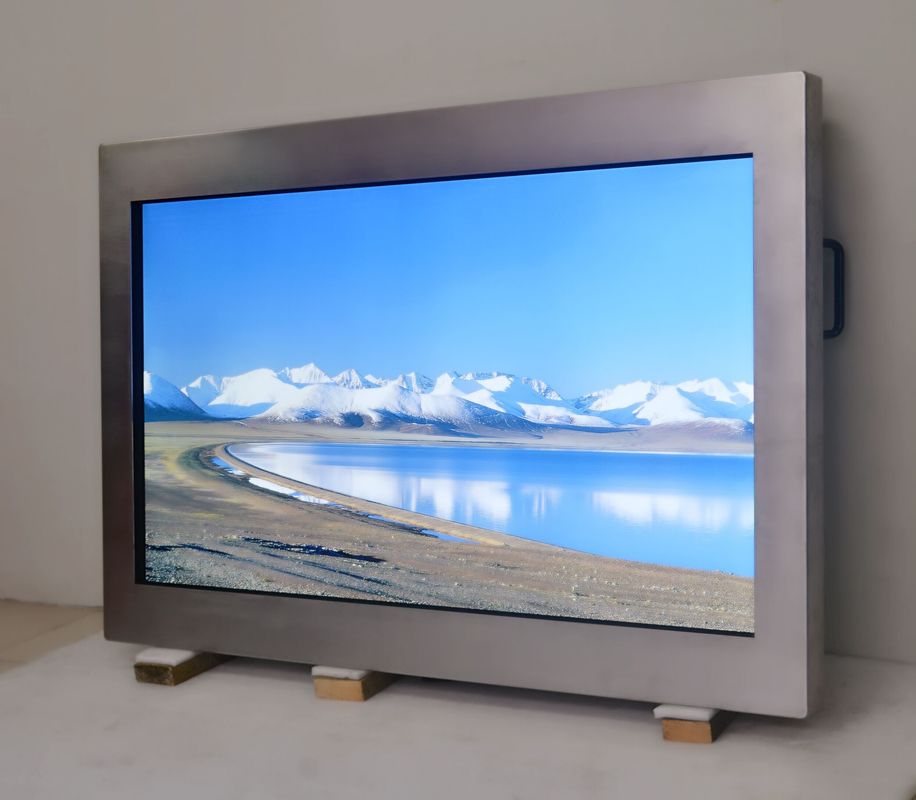

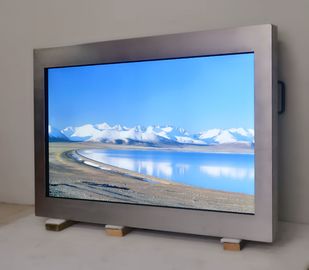

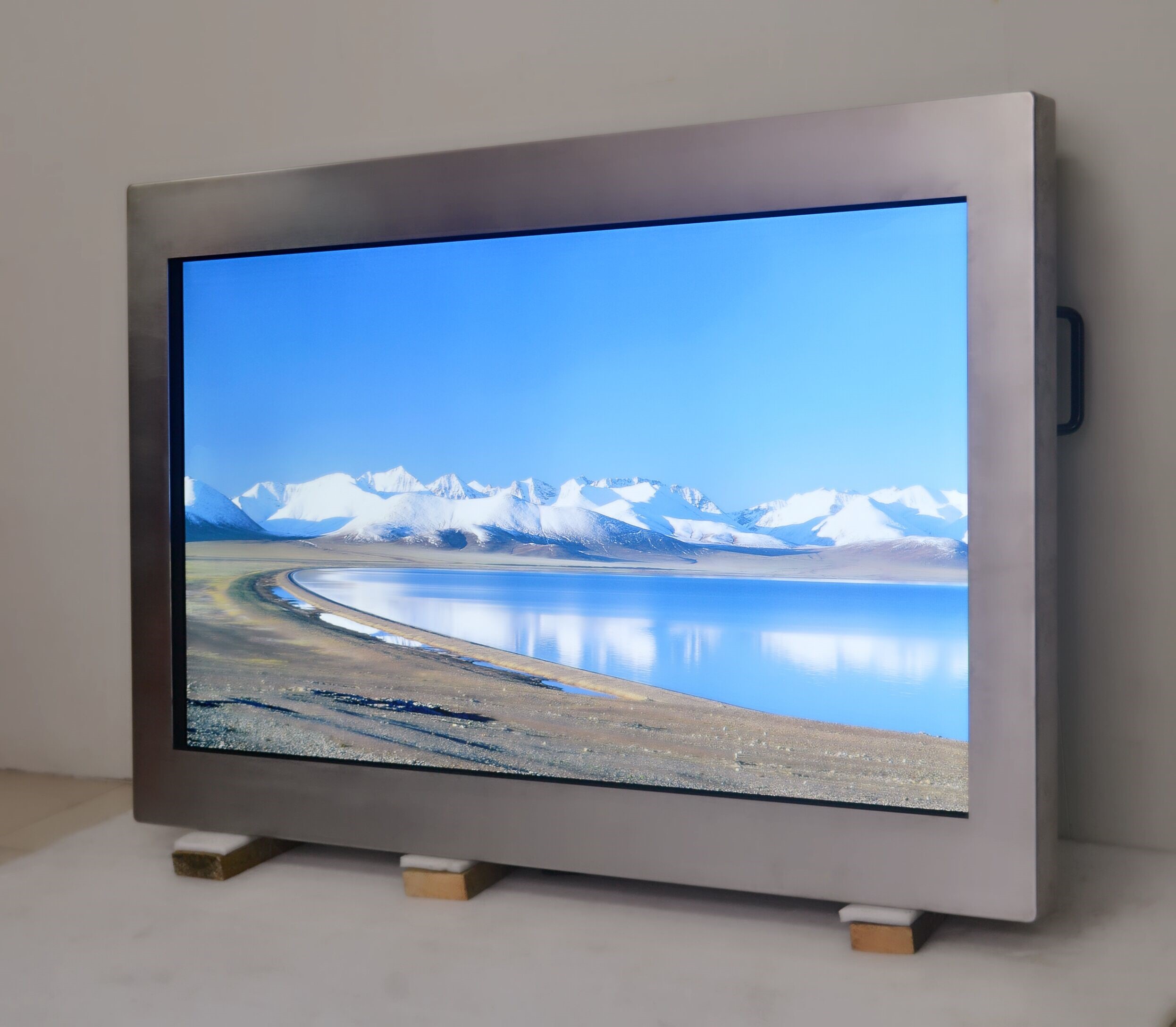

Maxbright 75" High Brightness Outdoor LCD Digital Signage Model:M750EDCL
LED Array Backlight Enhanced
Model:M750EDCL
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500-3000 nits, Sunlight Viewable
QWUXGA 3840 x 2160 Max. Resolution
Aspect Ratio: 16:9 Landscape mode
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -20 ～ 45o C
Media player box or mini PC for content playback
Waterproof IP54 enclosure
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1649.664 x 927.936mm, landscape enable |
| NATIVE RESOLUTION | 3840 x 2160 RGB |
| PIXEL PITCH | 0.429(H) x 0.429(V) mm |
| COLOR | 1.07 Bilion, 10 bits |
| HORIZONTAL FREQ. | 110KHz ~ 139.5KHz |
| VERTICAL FREQ. | 98Hz ~ 122Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500-3000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 5000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 8msec typical |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK 3288) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 860 Watt |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: D2550 Dual Core 1.8GHz, 2GB DDR2 |
| (option) | 500GB HDD, 5 x USB ports, 1 x RJ45, WiFi (option) |
|
DIMENSION WEIGHT |
1906 (L) x 1308(H) x 260(D) mm, (without air-con) 240 Kg approx (without air-con) |
| Waterproof IP54 Enclosure option | |
| COOLING | Cooling fans controlled by MCU for normal-outdoor |
| 1000W embedded air-con option for harsh outdoor | |
|
ENVIRONMENTAL OPTION |
Operating Temperature -20-45oC, Wide temp. -30-50oC (with cool/warm air-con) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
