Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | Model：M860EDCP |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160 RGB (4K) UHD |
|---|---|---|---|
| Brightness: | 1500 - 2000 Nits | Power Consumption: | 1000W |
| Interface: | HDMI X 2 | Operating Temperature: | -20 - 45 Deg C |
| High Light: | outdoor digital signage displays,outdoor lcd advertising display |
||

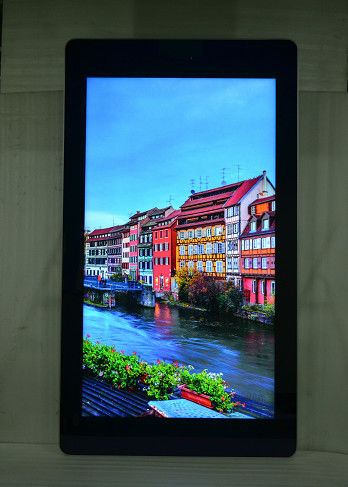

Maxbright 86 inch High Bright Outdoor E-poster IP65 Sunlight Readable
LED Array Backlight Enhanced
Model:M860EDCP
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 1500-2000 nits, Sunlight Viewable
3840 x 2160 Max. 4K Resolution
Aspect Ratio: 16:9, Portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -20 ～ 45o C
Media player or mini-PC for content playback
Waterproof IP54 enclosure
Main Specs of 86” High Bright Outdoor E-poster
| PANEL TYPE | a-Si active matrix TFT-LCD IPS |
| ACTIVE AREA | 1895.04 x 1065.96 mm |
| NATIVE RESOLUTION | 3840 x 2160 RGB QWUXGA Resolution |
| PIXEL PITCH | 0.4935(H) x 0.4935(V) mm |
| COLOR | 16.7M/1.07B 71% [CIE1931] |
| INTERFACE | VGA, HDMI x 2, DP option |
| . VIEWING ANGLE | 89/89/89/89 |
| BRIGHTNESS | 1500-2000 cd/m2, LED Backlight enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| DIMMING RANGE | 2000 nits down to 300 nits 100% to 15% |
| RESPONSE TIME | 8msec typical |
| REMOTE CONTROL | Support for Full OSD Features |
| MEDIA PLAYER | Media Player (RK3288) or i3/i5 CPU mini-PC |
| (option) | |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 750W at 1500 nits, 1000W at 2000 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDM cable x 1, VGA cable x 1 | |
| OPERATING | Mini PC: Intel Core i5-6200U 2.5GHz, 2GB DDR |
| (option) | 500GB HDD, 5 x USB ports, 1 x RJ45, WiFi |
|
DIMENSION
|
2175(H) x 1410(W) x 225(D) mm, Basement or wall mount bracket option |
| WEIGHT | 235 Kg approx. without bracket and packing |
| Waterproof IP54 Enclosure w/ AR Vandal glass | |
| COOLING | Cooling fans controlled by MCU or |
| Intelligent control system via RS-232 remote controlled | |
|
ENVIRONMENTAL
|
Operating Temperature -20-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | Standard One Year |
