Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | Maxbright |
Certification: | CE |
Model Number: | OF750EDCP |
Minimum Order Quantity: | 1 |
Price: | Negotiate |
Packaging Details: | Pearl cotton shock absorption + carton packaging |
Delivery Time: | 4~5 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100 pcs / month |
Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160 4K UHD Resolution |
---|---|---|---|
Brightness: | 2500 - 3000 Nits | Power Consumption: | 680 Watt At 3000 Nits Brightness Level |
Operating Voltage: | 100-230VAC 50/60Hz | Interface: | HDMI X 3, VGA, DVI Option |
Dimming: | Auto Dimming By Light Senser | Operating Temperature: | -20C - 50C |
Highlight: | daylight readable lcd display,sunlight readable screen |

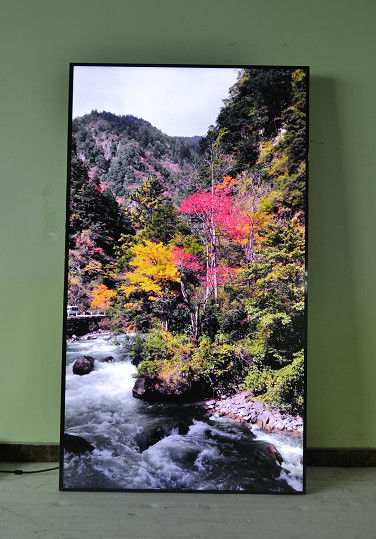

75” High Bright Open Frame LCD Module 4K UHD Resolution 2500-3000 nits
LED Array Backlight Enhanced
Model:OF750EDCP
FEATURES:
Active Matrix TFT-LCD
High Brightness 2500-3000 nits, Sunlight Viewable
3840 x 2160 Max. 4K UHD Resolution
Aspect Ratio: 16:9 in Portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ~ 50o C
Media player box or SBC for content playback
Main Specs of 75” HB Open Frame Module
PANEL TYPE | a-Si active matrix TFT-LCD |
ACTIVE AREA | 1649.664 x 927.936 mm portrait mode |
NATIVE RESOLUTION | 3840 x 2160, VGA to QWUXGA resolution |
PIXEL PITCH | 0.429(H) x 0.429(V) mm |
COLOR | 1.07 Billon 10 bits |
BACKLKGHT TYPE | LED array direct type backlight |
BRIGHTNESS | 2500-3000 cd/m2, direct type backlight |
CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 8000:1 |
DIMMING | Auto Dimming by Light Senser |
VIEWING ANGLE | 89/89/89/89 |
RESPONSE TIME | 8msec typical |
INTERFACE | VGA, HDMI x 3, DVI option |
LIFETIME | 50,000 hrs typical |
OPERATING VOLTAGE | 100-240 VAC 50/60Hz |
POWER CONSUMPTION | 750 Watt at 3000 nits brightness level |
STANDBY MODE | 5 Watt or less |
ACCESSORIES | AC Power Cord, VGA,HDMI cables |
ENCLOSURE | open frame model |
MODULE DIMENSION WEIGHT |
1683(W) x 962(H) x 60(D) mm, 58 Kg approx for panel only |
MEDIA PLAYER (OPTION) |
media player(RK3288) with 16G SD card, USB update, Ethernet or WiFi option |
TEMPERATURE | Operating: -20-50C, |
Storage Temperature -20-60C | |
HUMIDITY | Operating Humidity 10%-85% |
Storage Humidity 5%-90% | |
WARRANTY | 1 Year |
