Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | Model：OF490EDCP |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 pcs / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Brightness: | 2000-2500 Nits | Power Consumption: | 330W |
| High Light: | daylight readable lcd display,sunlight readable lcd module |
||

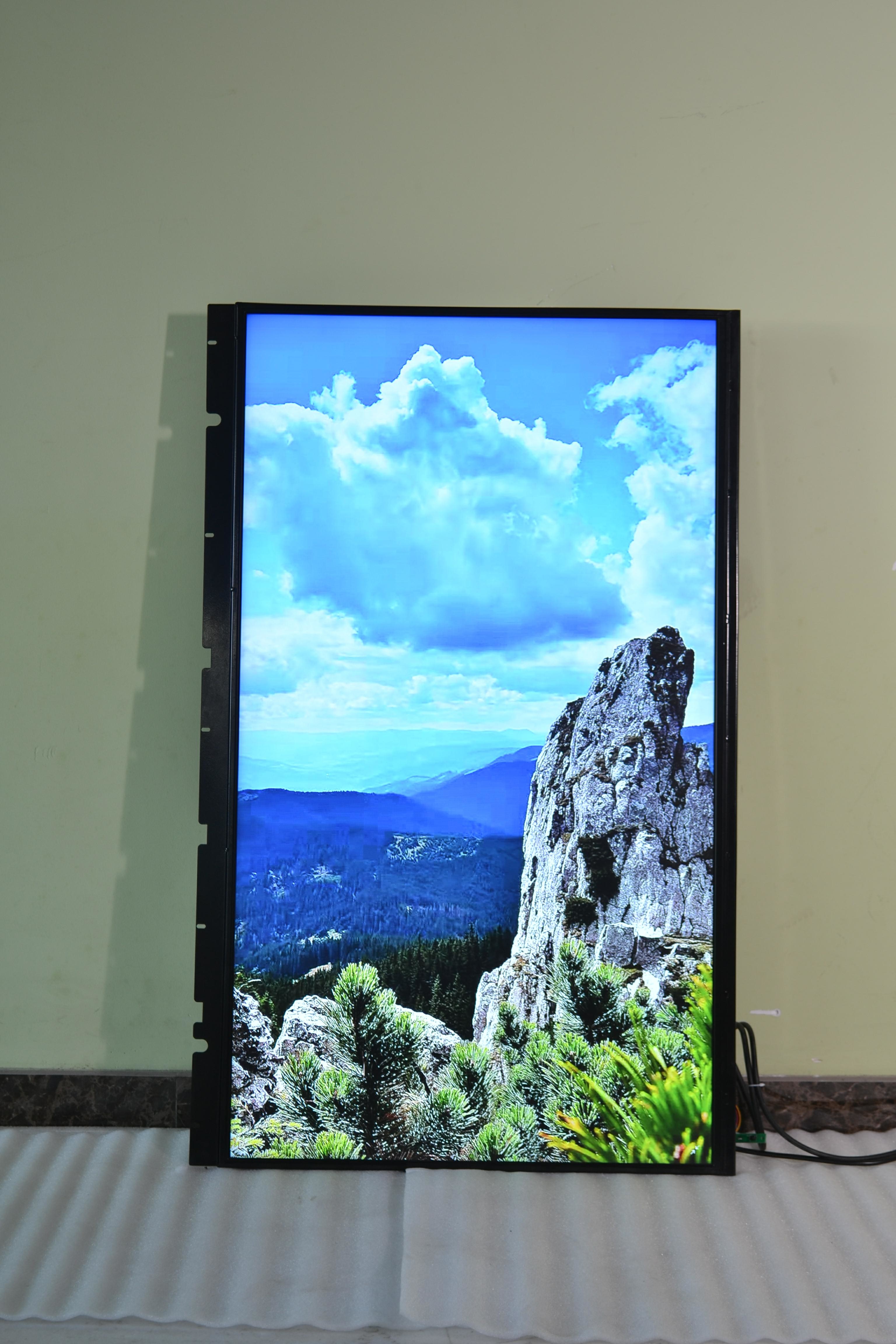

49” High Brighness Sunlight readable Open Frame LCD Module Model:OF490EDCP
LED Array Backlight Enhanced
Model:OF490EDCP
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 1500-2500 nits,
Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 16:9 in Landscape or Portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player box or mini-PC for content playback
Main Specs of 49” High Bright Module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 941.184(H) x 529.(V)mm |
| NATIVE RESOLUTION | 1920 x 1080 RGB |
| PIXEL PITCH | 0.4902(H) x 0.4902(V) mm |
| COLOR | 16.7 M, 8 bits depth |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 1500-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12 msec / 5ms typical |
| INTERFACE | VGA, AV, S-video, HDMI |
| MEDIA PLAYER | Media Player (RK 3288 chip) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 200W for 1500 nits, 330W for 2500 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
|
OPERATING
|
Media Player RK3288 Quad-core Contex-A17 1.8GHz, 2GB DDR3, 32-64GB SSD, 4 x USB ports, 1 x RJ45 |
| (option) | 1 x HDMI, 2 X RS232, Android OS 7.1 |
| DIMENSION | 963.6(H) x 557.9(W) x 65(D) mm |
| WEIGHT | 30 Kg approx |
| COOLING | By cooling fans controlled by MCU |
|
ENVIRONMENTAL
|
Operating Temperature -20-50oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
