Place of Origin: | China |
---|---|
Brand Name: | Maxbright |
Certification: | CE |
Model Number: | Model:OF320EDCP |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
Delivery Time: | 4~5 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
---|---|---|---|
Brightness: | 2000 - 2500 Nits | Power Consumption: | 180W |
High Light: | sunlight readable lcd display,sunlight readable screen |

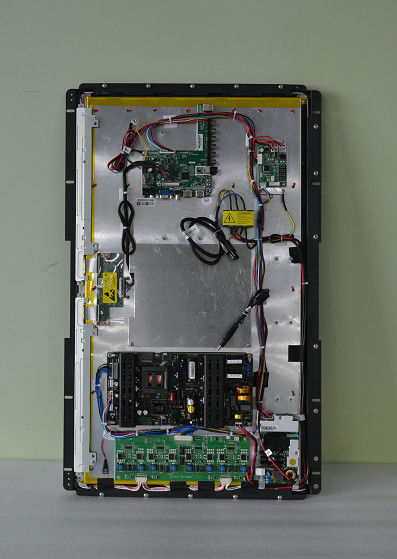

32” High Bright Open Frame LCD Module Model:OF320EDCP
LED Array Backlight Enhanced
Model:OF320EDCP
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 16:9 Landscape or Portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Digital and Analog Interface
Media player box or mini PC for content playback(option)
Main Spec of 32” High Brightness LCD module
PANEL TYPE | a-Si active matrixTFT-LCD |
ACTIVE AREA | 698.4 x 392.85 mm, Landscape orientation |
NATIVE RESOLUTION | 1920 x 1080 RGB |
PIXEL PITCH | 0.36375 x 0.36375 mm |
COLOR | 8 bits + Hi-FRC 1.07 B |
HORIZONTAL FREQ. | 121.8KHz ~ 136.4KHz |
VERTICAL FREQ. | 95Hz ~ 121.2 Hz |
BRIGHTNESS | 2000-2500 cd/m2, LED backlight enhanced |
CONTRAST | 5000:1, Dynamic contrast ratio: 20000:1 |
DIMMING | Auto dimming by Light Sensor |
VIEWING ANGLE | 89/89/89/89 |
RESPONSE TIME | 8ms(TYP.) Gray to Gray |
INTERFACE | VGA, HDMI |
MEDIA PLAYER | Media Player (RK3288 chip) (option) |
REMOTE CONTROL | Support for Full OSD Features |
OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
POWER CONSUMPTION | 135W for 2000 nits, 180W for 2500 nits |
STANDBY MODE | 5 Watt or less |
ACCESSORIES | AC Power Cord, HDMI, VGA cable x 1 |
OPERATING | Mini PC: D2550 Dual Core 1.8GHz, 2GB DDR2 |
(option) | 500GB HDD, 5 x USB ports, 1 x RJ45 |
DIMENSION | 730(H) x 430.0(V) x 40(D) mm for panel only |
WEIGHT | 18 Kg approx |
COOLING | By cooling fans controlled by MCU |
ENVIRONMENTAL | Operating Temperature 20-50C, |
Operating Humidity 10%-85% | |
Storage Temperature -30-60C | |
Storage Humidity 5%-90% | |
WARRANTY | One Year |
