Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | High Brightness Open Frame LCD Module |
| Model Number: | Model: OF104EECL-X |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: OF104EECL-X: | Model: OF104EECL-X | ||
|---|---|---|---|
| High Light: | daylight readable lcd display,sunlight readable screen |
||

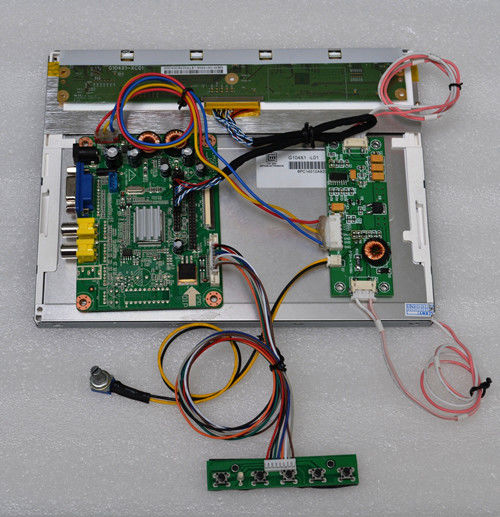

Maxbright 10.4" high bright LCD module
LED edge type backlight enhanced
Model: OF104EECL-X
FEATURES:
Active Matrix TFT-LCD
High Brightness 1500 nits,
Complete Sunlight Viewable
1024 x 768 Max. Resolution
Aspect Ratio: 4:3
Wide Viewing Angles 160 deg (L/R)
VGA, Composite (NTSC/PAL auto detected)
Wide operating temp range, -20 ～ 60oC
Main Specs of 10.4" high bright LCD module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 210.4mm x 157.8 mm |
| RESOLUTION | 1024 x 768 RGB XGA resolution |
| PIXEL PITCH | 0.2055(H) x 0.2055(V) mm |
| COLOR | 6-bit, 262K/8-bit 16.7M selectable |
| CONTRAST RATIO | 1200:1 Typical |
| BACKLIGHT TYPE | LED Edge type |
| BRIGHTNESS | 1500cd/m2, LED Backlight Enhanced |
| DIMMING | auto dimming by Light Sensor or manually by POT |
| VIEWING ANGLE | 88/88/88/88 |
| INTERFACE | LVDS |
| RESPONSE TIME | 4msec tr, 12msec tf |
| LIFE TIME | 45000 hrs |
| OPERATING VOLTAGE | 12VDC, 2.5.A |
| POWER CONSUMPTION | 18 Watt |
| STANDBY MODE | 1-2 Watt or less |
| DIMENSION | 230.0(W) × 180.2 (H) × 10.5(D) mm (typ.) |
| (Without LED drive board) | |
| ENVIRONMENTAL | Operating Temperature -20-60 C, |
| Operating Humidity 10%-90% | |
| Storage Temperature -30-80 C | |
| Storage Humidity 10%-90% | |
| WEIGHT | 850 g |
| WARRANTY | One year |
