Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | Maxbright |
| Model Number: | OF121EECL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200 pcs / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1024 X 768 |
|---|---|---|---|
| Brightness: | 1500 Nits | Power Consumption: | 22W |
| Operating Temperature: | -30 --- 70 Deg C | Operating Voltage: | 9-36VDC Option |
| High Light: | daylight readable lcd display,sunlight readable screen |
||

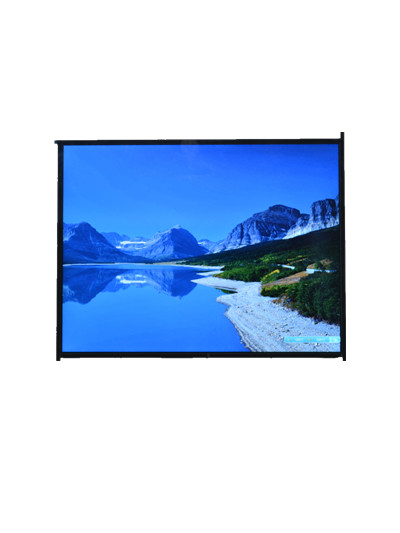

12.1” High Bright LCD Module Model:OF121EECL
LED Edge Type Backlight Enhanced
Model:OF121EECL
FEATURES:
Active Matrix TFT-LCD
High Brightness 1500 nits, Sunlight Viewable
Edge type LED backlight enhanced
1024 x 768 Max. Resolution,Aspect Ratio: 4:3
Wide Viewing Angles 160 deg. (L/R)
Wide Operating Temp Range, -30 ～ 70o C
Main Specs of 12.1” High Bright Rugged Module
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 245.76 x 184.32 mm |
| NATIVE RESOLUTION | 1024 x 768 RGB VGA to XGA resolution |
| PIXEL PITCH | 0.240 (H) x 0.240(V) mm |
| COLOR | 6 bits 262.144K |
| BACKLKGHT TYPE | LED Edge type |
| BRIGHTNESS | 1500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 700:1, Dynamic contrast ratio up to 10000:1 |
|
DIMMINg
|
100:1 auto dimming by Light Sensor or manually by + / - button or POT |
| VIEWING ANGLE | 80/80/80/80 |
| RESPONSE TIME | 6ms tr, 17ms tf |
| INTERFACE | VGA and composite video |
| LIFETIME | >45000 hrs |
| OPERATING VOLTAGE | 12VDC, 2.5A |
| POWER CONSUMPTION | 22Watt at 1500 nits bright level |
| STANDBY MODE | 1-2 Watt or less |
| ACCESSORIES | VGA cable and AV cable (option) |
| POWER SUPPLY | Power Adapter with Cord (option) |
| ENCLOSURE | Aluminum milled fully sealed IP65 (option) |
|
DIMENSION WEIGHT |
260.5(H) x 204(V) x 14(D) mm for panel 0.85 Kg approx. |
| OPERATING | 12VDC Input Voltage, 9-36VDC option |
| SHOCK | 50G half sine wave 1 time for X, Y, Z direction |
| VIBRATION | 1.5G 10-500HZ X,Y,Z directions 1.5mm, |
|
ENVIRONMENTAL (option) |
Operating Temperature -30-70 deg. C, Wide temp. -35-70C with internal heater, |
| Operating Humidity 10%-85% | |
| Storage Temperature -40-80C | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
