Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | Maxbright |
Certification: | CE |
Model Number: | M750EDCP-SW |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
Delivery Time: | 4~5 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100 sets / Month |
Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160 RGB (4K) UHD |
---|---|---|---|
Brightness: | 3000 Nits | Power Consumption: | 860W |
Operating Temperature: | -20C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
High Light: | indoor digital advertising display,floor standing digital signage |

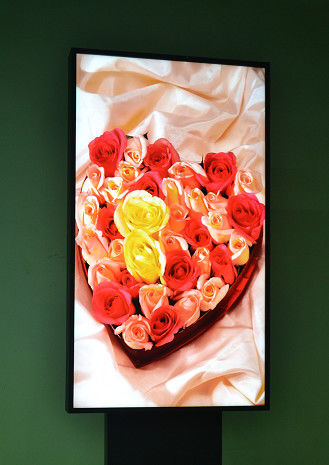

Maxbright 75" High Brightness Store Window Signage E-poster M750EDCP-SW
LED Array Backlight Enhanced
Model: M750EDCP-SW
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500-3000 nits, sunlight readable
3840 x 2160 4K UHD Max. Resolution
Aspect Ratio: 9:16 in portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Narrow Bezel and Fashion Housing Design
Media player box or mini PC Built-in (option)
PANEL TYPE | a-Si active matrix TFT-LCD |
ACTIVE AREA | 1649.664 x 927.936mm Portrait orientation |
NATIVE RESOLUTION | 3840 x 2160 RGB 4K resolution |
PIXEL PITCH | 0.429(H) x 0.429(V) mm |
COLOR | 1.07 M, 10 bits |
HORIZONTAL FREQ. | 110KHz ~ 139.5KHz(HDMI) |
VERTICAL FREQ. | 47Hz ~ 63Hz(HDMI) |
BRIGHTNESS | 2500-3000 cd/m2 |
CONTRAST RATIO | 1200:1, Dynamic Contrast: 10,000:1 |
DIMMING | Auto Dimming by Light Sensor, 100% to 10% |
VIEWING ANGLE | 89/89/89/89 |
RESPONSE TIME | 6msec typical |
INTERFACE | VGA, HDMI x 2, |
MEDIA PLAYER | Media Player (RK3288 Quad-core) 2G/8G memory |
REMOTE CONTROL | Support for Full OSD Features |
OPERATING VOLTAGE | 100 ~ 240VAC 50/60Hz |
POWER CONSUMPTION | 860W at 3000 nits brightness level |
STANDBY MODE | 5 Watt or less |
ACCESSORIES | AC Power Cord, Remote Controller |
HDMI, VGA, USB, RJ45 cable x 1 | |
OPERATING | Mini PC: D2550 Quad-Core 1.86GHz, 2GB DDR2 |
(option) | 500 HDD, 5 x USB ports, 1 x RJ45, Wi-Fi |
TOUCH | Metal Mesh CAP, 10 points with USB controller(option) |
DIMENSION | 1680(H) x 956(W) x 120(D) mm without floor stand |
Without Hang Mount Bracket | |
WEIGHT | 85 Kg approx net weight w/o floor stand |
ENCLOSURE | Iron Sheet folded, Outdoor Powder Coating, |
COOLING | By cooling fans controlled by intelligent MCU controller |
TEMPERATURE. PROTECT | High Temperature Protection for 60 oC or over |
ENVIRONMENTAL | Operating Temperature -20-45oC, |
Wide temp. -30-45oC (option) | |
Operating Humidity 10%-80% | |
Storage Temperature -30-60oC | |
Storage Humidity 5%-90% | |
Warranty | One year |
