Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M860EDCL-i |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 60 sets / month |
| Panel: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160 RGB (4K) UHD |
|---|---|---|---|
| Brightness: | 2000 Nits | Power Consumption: | 1850W At 2000 Nits Brightness Level |
| Operating Voltage: | 100 - 240 VAC 50/60Hz | Operating Temperature: | -20C -- 50C |
| Highlight: | outdoor digital signage displays,outdoor digital advertising display screens |
||

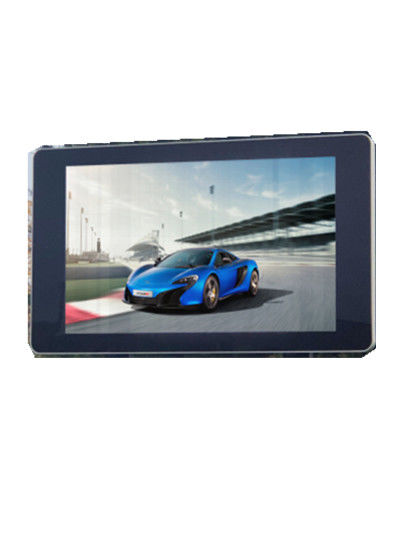

Maxbright 86 inch High Bright Outdoor LCD Signage Advertising Display Model:M860EDCL-i
LED array backlight enhanced
Model:M860EDCL-i
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000 nits, Sunlight Viewable
3840 x 2160 Max. Resolution
Aspect Ratio: 16:9 in Landscape mode enabled
Wide Viewing Angles 178 deg. (L/R/U/D)
Wide operating temp range, -20 ～ 50o C
Media player or mini-PC for content playback
Waterproof IP54 enclosure
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1895.04 x 1065.96 mm landscape orientation |
| NATIVE RESOLUTION | 3840 x 2160 RGB, 4K resolution |
| PIXEL PITCH | 0.4935(H) x 0.4935(V) mm |
| COLOR | 16.7M / 1.07B, [CIE1931] |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 8 msec typical |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK3288 Android OS ) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 1500W for 1500 nits, 1850W for 2000 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
|
OPERATING (option) |
Mini PC: Intel Core i5-6200 2.5GHz, 2GB DDR, 500GB HDD, 5 x USB, 1 x RJ45, 1 x HDMI |
| TOUCH | 10 Points Metal Mesh Touch |
|
DIMENSION WEIGHT |
2320(H) x 1310(W) x 180(D)mm 190 Kg approx |
| Waterproof IP54 Enclosure | |
| COOLING | By cooling fans controlled by MCU |
| 1200W Mini air-condition option for Harsh outdoor | |
| ENVIRONMENTAL |
Operating Temperature -20-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
