Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M750EDCP-i |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging + pallet |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 60 sets / month |
| Panel: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160 |
|---|---|---|---|
| Brightness: | 3000 Nits | Power Consumption: | 680W |
| Operating Voltage: | 100 - 240 VAC 50/60Hz | Operating Temperature: | -20C -- 50C |
| High Light: | outdoor digital signage displays,outdoor lcd advertising display |
||

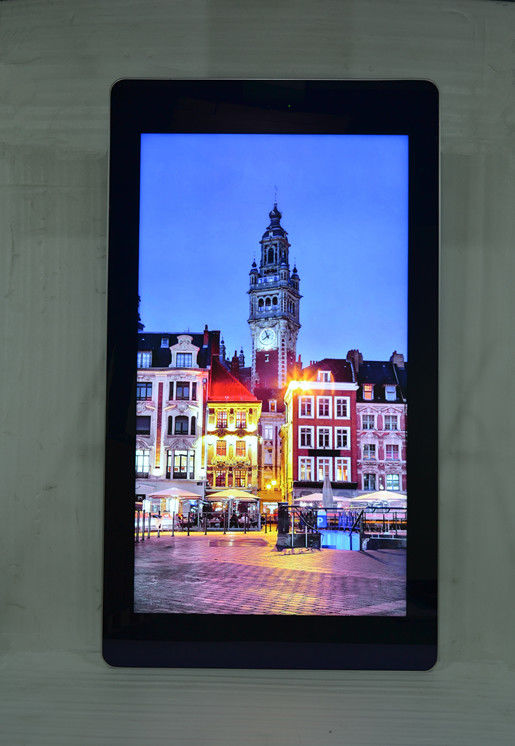

Maxbright 75" High Bright Outdoor LCD E-poster Model:M750EDCP-i
LED array backlight enhanced
Model:M750EDCP-i
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500-3000 nits, Sunlight Viewable
3840 x 2160 QWUXGA Resolution
Aspect Ratio: 9:16 in Portrait mode enabled
Wide Viewing Angles 178 deg. (L/R/U/D)
Wide operating temp range, -20 ～ 50o C
Media player or mini-PC for content playback
Waterproof IP54 enclosure
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 927.936 x 1649.664 mm portrait orientation |
| NATIVE RESOLUTION | 3840 x 2160 RGB, 4K model |
| PIXEL PITCH | 0.429(H) x 0.429(V) mm |
| COLOR | 1.07 Billion, 10 bits |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2500-3000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 8 msec typical |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK3288 Android OS ) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 680W for 3000 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
|
OPERATING (option) |
Mini PC: D2550 Dual Core 1.8GHz, 2GB DDR 500GB HDD, 5 x USB, 1 x RJ45, Wi-Fi |
| 1 x HDMI, 2 X RS232, Windows OS | |
| TOUCH | 10 Points Metal Mesh CAP |
|
DIMENSION WEIGHT |
1920(H) x 1180(W) x 160(D)mm 180 Kg approx |
| Waterproof IP54 Enclosure | |
| COOLING | By cooling fans controlled by MCU |
| 600W Mini air-condition option for Harsh outdoor | |
| ENVIRONMENTAL |
Operating Temperature -20-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
