Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M550EDCP-i |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / month |
| Panel: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160, 1920 X 1080 |
|---|---|---|---|
| Brightness: | 2000 - 2500 Nits | Power Consumption: | 450W(FHD) / 550W(4K) |
| Operating Voltage: | 100 - 240 VAC 50/60Hz | Operating Temperature: | -30C -- 50C |
| High Light: | outdoor digital signage displays,outdoor digital advertising display screens |
||

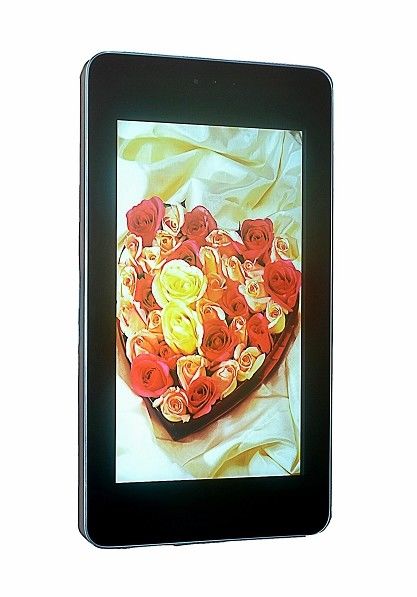

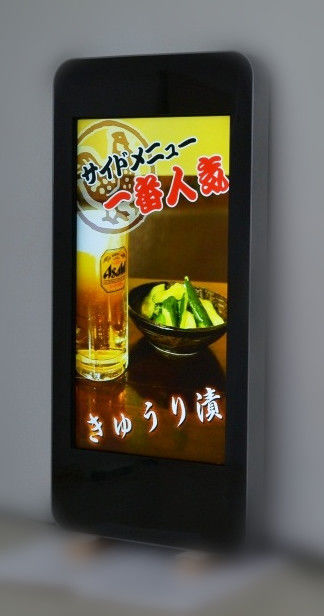

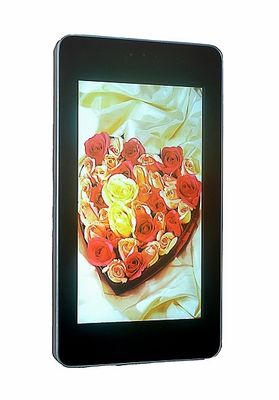

Maxbright 55" High Bright Outdoor LCD E-poster Model:M550EDCP-i
LED array backlight enhanced
Model : M550EDCP-i
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 9:16 in Portrait mode enabled
Wide Viewing Angles 178 deg. (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player or mini-PC for content playback
Waterproof IP54 enclosure option
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 680.4 x 1209.6 mm portrait orientation |
| NATIVE RESOLUTION | 1080 x 1920 RGB, 4K model available |
| PIXEL PITCH | 0.630(H) x 0.630(V) mm |
| COLOR | 16.7 Million, 8 bits |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12 msec typical |
| INTERFACE | VGA, HDMI x |
| MEDIA PLAYER | Media Player (RK3288 Android OS ) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 350W for 2000 nits, 450W for 2500 nits |
| STANDBY MODE | 3 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
|
OPERATING (option) |
Mini PC: D2550 dual Core 1.86GHz, 2G DDR2 500 HDD, 5 x USB, 1 x RJ45, Wi-Fi |
| TOUCH | G+G Projective CAP, 10 Points with USB controller |
|
DIMENSION WEIGHT |
1638(H) x 817(W) x 140(D)mm 85 Kg approx |
| Waterproof IP54 Enclosure | |
| COOLING | By cooling fans controlled by MCU |
| 400W Mini air-condition option for Harsh outdoor | |
| ENVIRONMENTAL |
Operating Temperature -20-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
