Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | Maxbright |
Certification: | CE |
Model Number: | T550EDCP |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
Delivery Time: | 4~5 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100 sets / Month |
Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080, 3840 X 2160 Available |
---|---|---|---|
Brightness: | 2500 Nits | Power Consumption: | 360W~450W |
Operating Temperature: | -30C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
Highlight: | outdoor digital signage displays,outdoor digital signage totem |

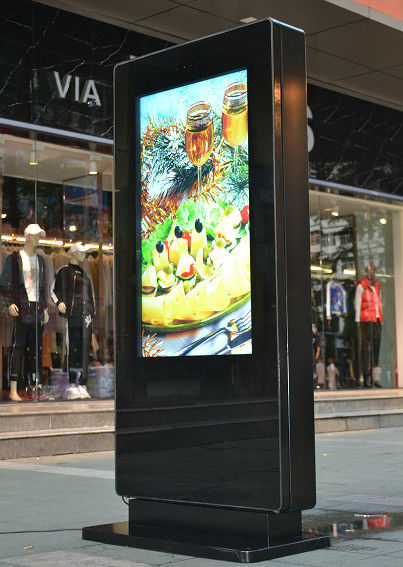

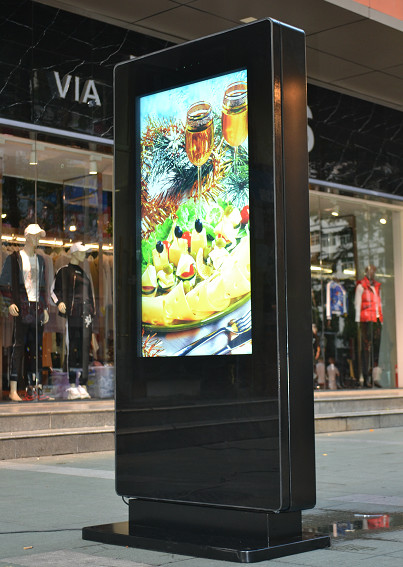

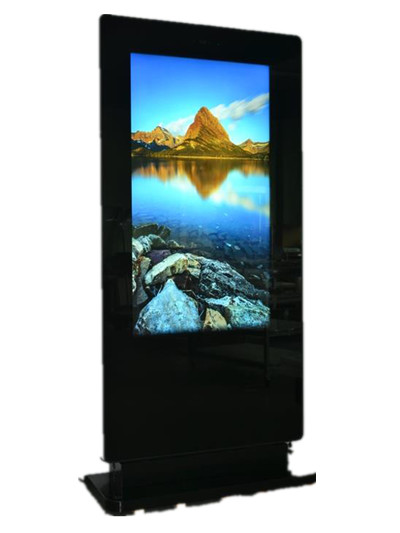

Maxbright 55" High Bright Outdoor IP65 Advertising Totem Model: T550EDCP
LED Array Backlight Enhanced
Model: T550EDCP
FEATURES:
Active Matrix TFT-LCD Public Display
High Brightness 2000-2500 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30 ~ 50o C
Media player box or mini PC for content playback
Air-condition cooling option
PANEL TYPE | a-Si active matrix TFT-LCD |
ACTIVE AREA | 680.4 x 1209.6 mm portrait orientation |
NATIVE RESOLUTION | 1080 x 1920 RGB, 3840 x 2160 available |
PIXEL PITCH | 0.21(H) x 0.63(V) mm |
COLOR | 1.073 G, 10 bits depth |
HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
CONTRAST RATIO | 1300:1, Dynamic contrast ratio: 6500:1 |
DIMMING | Auto-dimming by Light Sensor |
VIEWING ANGLE | 89/89/89/89 |
RESPONSE TIME | 4.5ms |
INTERFACE | VGA, AV, HDMI x 2 |
MEDIA PLAYER | Media Player (RK3288) (option) |
REMOTE CONTROL | Support for Full OSD Features |
OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
POWER CONSUMPTION | 2000 nits/360W, 2500 nits/450W |
STANDBY MODE | 5 Watt or less |
ACCESSORIES | AC Power Cord, Remote Controller |
HDMI, VGA cable x 1 | |
OPERATING | Mini PC: D2550 Dual Core 1.86GHz, 2GB DDR2 |
(option) | 500GB HDD, 5 x USB ports, 1 x RJ45 |
DIMENSION | 2000(H) x 950(W) x 220(D) mm w/o Air-Con, |
WEIGHT | 185 Kg approx |
COOLING | By cooling fans controlled by MCU |
ENVIRONMENTAL
|
Operating Temperature -20-50C, Wide temp. -30-50C (option) |
Operating Humidity 10%-85% | |
Storage Temperature -30-60C | |
Storage Humidity 5%-90% | |
WARRANTY | One year |
