Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | Maxbright |
Certification: | CE |
Model Number: | T550EDCL |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
Delivery Time: | 4~5 week |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50-100 unit / month |
Type: | A-Si Active Matrix TFT-LCD | Brightness: | 2500-3000 Nits |
---|---|---|---|
Operating Voltage: | AC100~240V 50 /60 HZ | Operating Temperature: | -20 --- 50 Deg C |
Power Comsumption: | 380 W | Application: | Outdoor Advertising Publication, Interactive Touch, Info Search |
Input Voltage: | AC100~240V 50 /60 HZ | Resolution: | 1920 X 1080, 3840 X 2160 |
Highlight: | outdoor digital signage kiosk,outdoor kiosk signs |

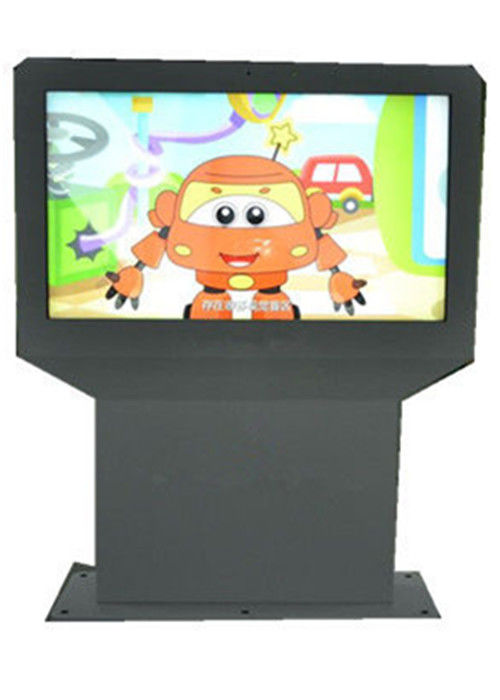

Maxbright 55" High Bright Outdoor Digital Signage Display Model : T550EDCL
LED Array Backlight Enhanced
Model: T550EDCL
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500 nits,
1920 x 1080 Max. Resolution, 4K model available
Aspect Ratio: 16:9 in Landscape orienation
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -20 ~ 50o C
Media player box or mini PC for content playback
Waterproof IP54 enclosure
PANEL TYPE | a-Si active matrix TFT-LCD |
ACTIVE AREA | 1209.6 x 680.4mm Landscape orientation |
NATIVE RESOLUTION | 1920 x 1080 RGB WUXGA, 4K available |
PIXEL PITCH | 0.21(H) x 0.63(V) mm |
COLOR | 1.073 G, 10 bits |
HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
BRIGHTNESS | 2500 cd/m2, 3000 cd/ m2 model available |
CONTRAST RATIO | 1300:1, |
DIMMING | Auto Dimming by Light Sensorr |
VIEWING ANGLE | 89/89/89/89 |
RESPONSE TIME | 4.5msec typical |
INTERFACE | VGA, AV, S-video, HDMI |
MEDIA PLAYER | Media Player (Sigma 8635) (option) |
REMOTE CONTROL | Support for Full OSD Features |
OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
POWER CONSUMPTION | 380 Watt |
STANDBY MODE | 3 Watt or less |
ACCESSORIES | AC Power Cord, Remote Controller |
HDMI, VGA, Composite, S-Video cable x 1 | |
OPERATING | Mini PC: D2550 Dual Core 1.8GHz, 4GB DDR2 |
(option) | 2.5” HD, 6 x USB ports, 1 x RJ45 |
TOUCH | 10 Points PCAP with USB controller |
DIMENSION | 1346(H) x 819(W) x 240(D) mm |
without stand and air-con | |
WEIGHT | 95 Kg approx without stand and air-con |
IP RATE | Waterproof IP54 Enclosure |
COOLING | By cooling fans controlled by MCU |
600W mini air-conditioner for harsh outdoor | |
ENVIRONMENTAL | Operating Temperature -20-50oC, |
Wide temp. -30-50oC (option) | |
Operating Humidity 10%-85% | |
Storage Temperature -30-60oC | |
Storage Humidity 5%-90% | |
Warranty | One year |
