Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T490EDCP |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 week |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Brightness: | 2500 -3000 Nits |
|---|---|---|---|
| Operating Temperature: | -30 --- 50 Deg C | Operating Voltage: | AC100~240V 50 /60 HZ |
| Power Comsumption: | 380 W | Application: | Outdoor Advertising Publication, Interactive Touch, Info Search, Way Finder |
| Input Voltage: | AC100~240V 50 /60 HZ | Resolution: | 1920 X 1080, 3840 X 2160 |
| High Light: | outdoor digital signage displays,outdoor digital signage totem |
||

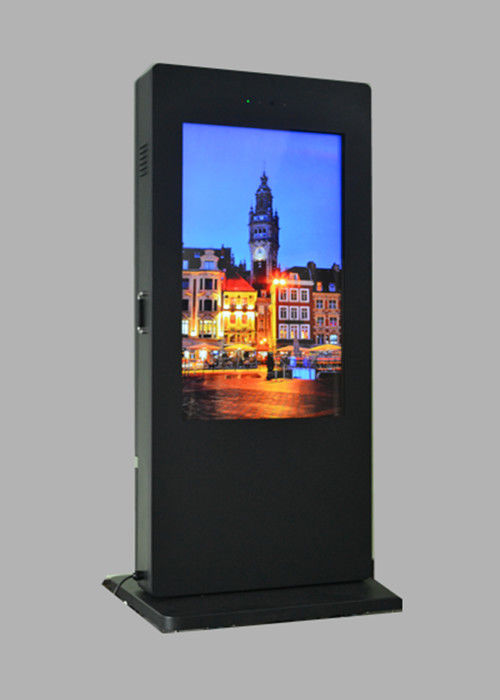

Maxbright 49" High Bright IP65 Outdoor Digital Totem Model: T490EDCP
LED Array Backlight Enhanced
Model: T490EDCP
FEATURES:
Active Matrix TFT-LCD PD panel
49”High Bright IP65 Outdoor LCD Kiosk
High Brightness 3000 nits, Sunlight Viewable
1920 x 1080 Max. Resolution, 4K available
Aspect Ratio: 9:16 in portrait mode enabled
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -30～50o C
Media player box or mini PC for content display
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1073.8 x 604.2 mm portrait for both sides |
| NATIVE RESOLUTION | 1080 x 1920 RGB, 4K available |
| PIXEL PITCH | 0.55926(H) x 0.55926(V) mm |
| COLOR | 16.7 M, 8 bits depth |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. |
47Hz ~ 63Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500 - 3000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 6500:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 4.5ms |
| INTERFACE | VGA, HDMI x 3 |
| MEDIA PLAYER | Media Player (RK 3288 CPU) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 380W at 2500 nits level |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: NDiS-1660C, 2GB DDR2, 4GB option |
| (option) | 2.5” 500GB HD, 4 x USB ports, 1 x RJ45, WiFi |
| 3G or 4G module option | |
|
DIMENSION WEIGHT |
1940(H) x 870(W) x 180HD) w/o Air-Con, 155 Kg approx. |
| ENCLOSURE | Iron sheet with outdoor powder painting |
| COOLING | By cooling fans controlled by MCU for outdoor |
|
ENVIRONMENTAL
|
Operating Temperature -20-50C, Wide temp. -30-50C (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30 - 60C | |
| Storage Humidity 5%-90% | |
| WARRANTY |
One year, limited for 2nd year |
