Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | Certificate of Approval |
| Model Number: | M650EDCL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50-100 unit / month |
| Type: | A-Si Active Matrix TFT-LCD | Brightness: | 2000 -2500 Nits |
|---|---|---|---|
| Operating Voltage: | AC100~240V 50 /60 HZ | Operating Temperature: | -30 --- 50 Deg C |
| Power Comsumption: | 450 W | Application: | Outdoor Advertising Publish, Interactive Touch, Info Search |
| Input Voltage: | AC100~240V 50 /60 HZ | ||
| High Light: | outdoor digital signage displays,outdoor lcd advertising display |
||

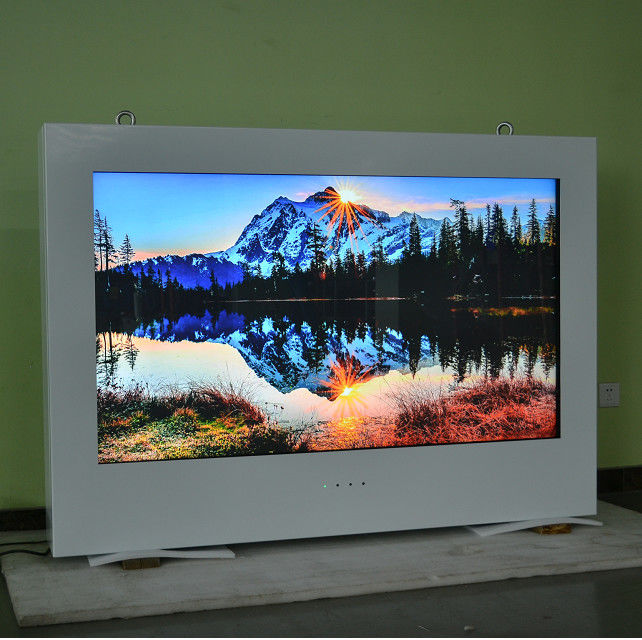

Maxbright 65" Outdoor High Bright LED Array Backlight Enhanced Model: M650EDCL
LED Array Backlight Enhanced
Model: M650EDCL
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
3840 x 2160 QWUXGA Max. Resolution
Aspect Ratio: 16:9 in landscape mode
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -20 ～ 45o C
Media player box or mini-PC for content playback
Waterproof IP54 enclosure option
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1428.48 x 803.52 mm landscape orientation |
| NATIVE RESOLUTION | 3840 x 2160 QWUXGA Max. Resolution |
| PIXEL PITCH | 0.372(H) x 0.372(V) mm |
| COLOR | 1.073 G, 10 bits |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL) |
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 8msec typical |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288 Android OS) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 430W for 2000 nits, 520W for 2500 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: D2550 Dual Core 1.8GHz, 4GB DDR2 |
| (option) | 2.5” HD, 5 x USB ports, 1 x RJ45 |
| DIMENSION | 1685(H) x 1183(W) x 240(D) mm, |
| WEIGHT | 175 Kg approx |
| Waterproof IP54 Enclosure option | |
| COOLING | By cooling fans and temp sensor for indoor |
| 600W Mini air-conditioner option for outdoor | |
| ENVIRONMENTAL |
Operating Temperature -10-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
