Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T490EDCL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | EPE foam shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080, 3840 X 2160 Available |
|---|---|---|---|
| Brightness: | 2500 Nits | Power Consumption: | 660W |
| Operating Temperature: | -20C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| High Light: | outdoor kiosk signs,digital display touch screen kiosk |
||

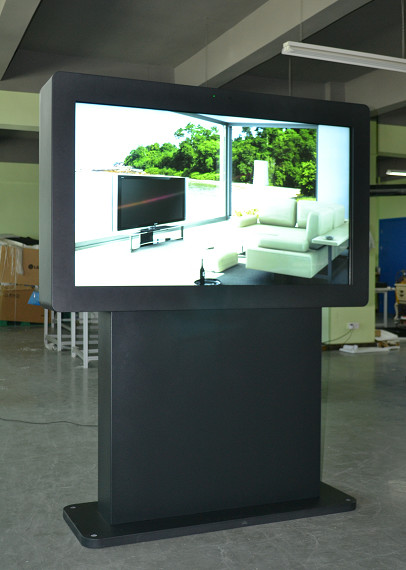

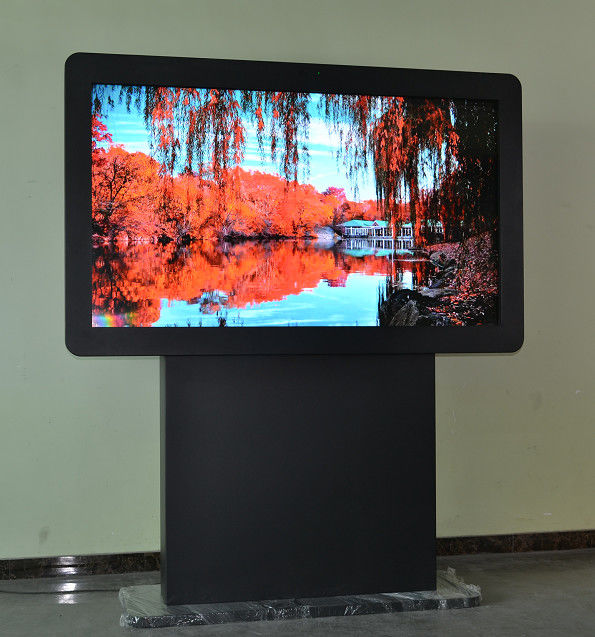

Maxbright 49" High Bright IP65 Outdoor Kiosk Model: T490EDCL
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits
1920 x 1080 Max. Resolution, 4K available
Aspect Ratio: 16:9 in landscape mode
Wide Viewing Angles 178 deg (L/R/U/D)
Waterproof and Fashion Design
Media player box or mini PC Built-in (option)
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1096.2 x 632.5 mm, landscape mode |
| NATIVE RESOLUTION | 1920 x 1080 RGB 4K model available |
| PIXEL PITCH | 0.55926 x 0.55926 mm |
| COLOR | 8 bits 16.7 M |
| BRIGHTNESS | 2000-2500 cd/m2 LED BLU Enhanced |
| CONTRAST | 1100:1, Dynamic contrast ratio: 9000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12ms / 5ms |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 50/60Hz |
| POWER CONSUMPTION | 300W for 2000 nits, 380W for 2500 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: D2550 Dual Core 1.86GHz, 2GB DDR2 |
| (option) | 2.5” HDD 500GB, 5 x USB ports, 1 x RJ45 |
| TOUCH SCREEN | PCAP Touch with USB controller(option) |
| ENCLOSURE | IP65 Waterproof Fashion Design |
| AR Vandal glass for front protection | |
|
DIMENSION WEIGHT |
690(H) x 1820(W) x 240(D) mm, w/o basement 110 Kg approx |
| COOLING | By cooling fans controlled by MCU |
| ENVIRONMENTAL | Operating Temperature -20-50C, |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-95% | |
| WARRANTY | One Year |
