Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T550EDCL-DF-SW |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1080 X 1920 RGB/3840 X 2160 RGB(4K) |
|---|---|---|---|
| Brightness: | 2500 Nits For Shop Window、500 Nits For Inside Shop | Power Consumption: | 430W / 90W |
| Operating Temperature: | -30C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| High Light: | 2500 Nits Indoor Digital Signage Display,2500 Nits Indoor LCD Display,55" 2500 Nits LCD Display |
||

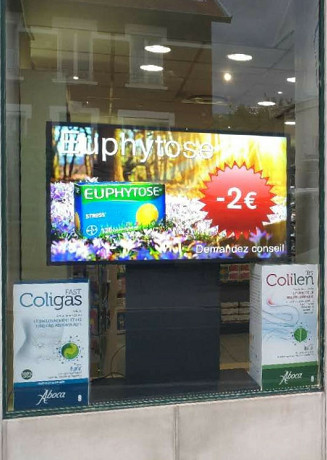

Dual Face 55 inch 2500 nits Store Window Indoor Digital Signage Display
Built-in automatic photosensitive probe, can automatically adjust the screen brightness according to the ambient brightness, energy saving
Intelligent projected capacitive touch
High quality intelligent projective capacitive touch panel, smooth mirror, high precision and touch sensitivity, fast speed, no drift phenomenon, ultra-high light transmittance, waterproof, dustproof, anti-storm ability, can touch operation under strong light.
Keys FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500 nits / 500 nits, Dual Face
1920 x 1080 WUXGA Max. Resolution
Aspect Rati0: 16:9 in landscape or Portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Wide operating temp range, -20 ～ 45o C
Android player box or mini-PC for content playback
Waterproof IP54 enclosure option
Specification Of Outdoor LCD Digital Signage
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 680.4 x 1209.6 mm landscape or portrait orientation |
| NATIVE RESOLUTION | 1080 x 1920 RGB/3840 x 2160 RGB(4K) |
| PIXEL PITCH | 0.63(H) x 0.63(V) mm |
| COLOR | 1.073 G, 10 bits |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500 cd/m2, for Window face, 500 nits for indoor face |
| CONTRAST RATIO | 1300:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 4.5msec typical |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288 Android 7.1 OS) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 460W for 2500 nits panel, 90W for 500 nits panel |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: D2550 Dual Core 1.8GHz, 4GB DDR2 |
| (option) | 2.5” HD, 5 x USB ports, 1 x RJ45 |
| DIMENSION | 1253(W) x 724(H) x 110(D) mm w/o floor stand |
| WEIGHT | 75 Kg approx |
| IP54 Enclosure option | |
| COOLING | By cooling fans controlled by MCU |
|
ENVIRONMENTAL
|
Operating Temperature -10-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
System functions:
Android hardware options:
CPU: RK3288 / RK3399
RAM+ROM: 2G+8G/4G+32G
Operating system: Android 7.1
Interface: RS232.4,TTL serial port.1, USB3.01, USB2.05
Network support: 3G/4G/WIFI/RJ45 Ethernet/Bluetooth /GPS
Product Features:
1. Automatic brightness control: automatically adjust the brightness of the screen according to the changes of outdoor environment light, bright and visible under the sunlight during the day, soft and gorgeous at night, energy saving and environmental friendly.
2. Intelligent temperature control: According to the change of internal environment temperature, intelligent start fans or air conditioner to dissipate heat. When the temperature reaches above 30℃, the fans or air conditioner will start to dissipate heat automatically. When the temperature is below 20℃, the cooling fans or air conditioner will be automatically stopped.
3. High temperature protection function: When casing internal ambient temperature is above 60℃, the protection function will automatically start, automatically reducing the brightness to around 500 nits; When the internal ambient temperature is below 40℃, the brightness will be automatically restored to the appropriate viewing brightness.
4. Low-temperature protection: When the internal environment temperature is lower than -10℃, the heating function will be started automatically; When the internal temperature is above 5℃, the heating function will be stopped automatically. (This option is suitable for harsh outdoor working environment below -20℃)
5, intelligent remote monitoring function: through RS232 communication interface and network connection, real-time device security and working status data upload, remote monitoring of the main parts of the machine is working properly, timely find the device security or any failure, reduce maintenance time and cost, improve maintenance efficiency.
