Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M860EDCL |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton packaging + pallet |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50 sets / Month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160 RGB (4K) UHD |
|---|---|---|---|
| Brightness: | 2000 Nits | Power Consumption: | 1850W |
| Operating Temperature: | -30C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| Highlight: | indoor digital advertising display,floor standing digital signage |
||

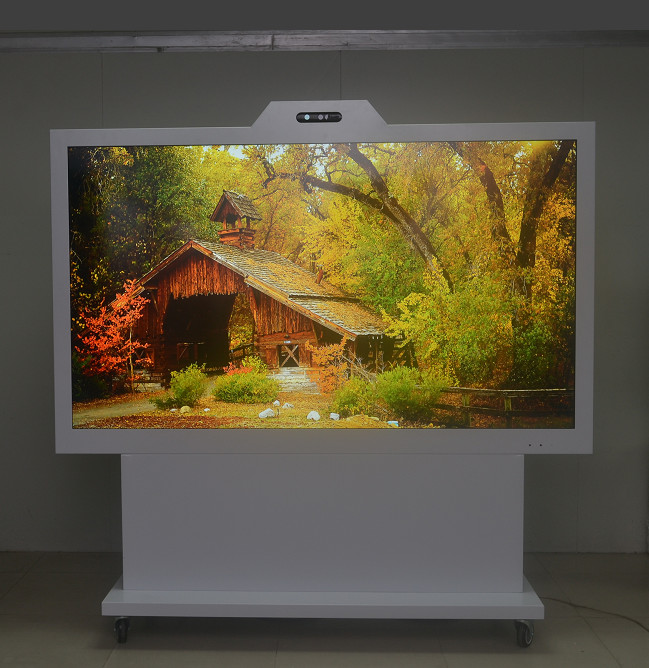

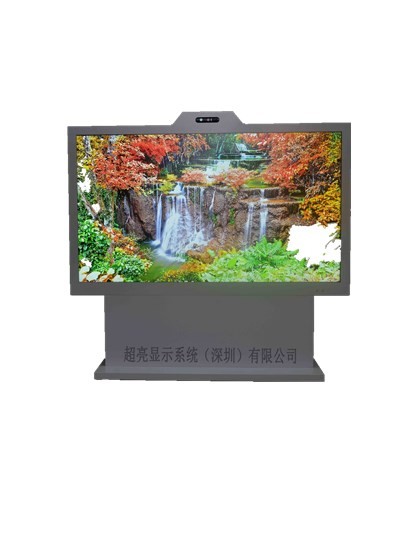

Maxbright 86" High Brightness Store Window Advertising Signage Display M860EDCL
LED Array Backlight Enhanced
Model: M860EDCL
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 1500-2000 nits
3840 x 2160 Max. QWUXGA Resolution
Aspect Ratio: 16:9 in portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Waterproof IP65 and Fashion Design
Media player box or mini PC Built-in (option)
Main Specs of 86” High Bright 4K Monitor
| PANEL TYPE | a-Si active matrix TFT-LCD IPS |
| ACTIVE AREA | 1895.04 x 1065.96 mm |
| NATIVE RESOLUTION | 3840 x 2160 RGB UHD |
| PIXEL PITCH | 0.4935(H) x 0.4935(V) mm |
| COLOR | 16.7M/1.07B 71% [CIE1931] |
| INTERFACE | VGA, HDMI, DP option |
| . VIEWING ANGLE | 89/89/89/89 |
| BRIGHTNESS | 1500-2000 cd/m2, LED Backlight enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| DIMMING RANGE | 2000 nits to 300 nits 100% to 15% |
| RESPONSE TIME | 8msec typical |
| REMOTE CONTROL | Support for Full OSD Features |
| MEDIA PLAYER | Media Player (RK3399) or i3/i5 CPU mini-PC |
| (option) | |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 1400W at 1500 nits, 1850W at 2000 nits |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: Intel Core i5-6200U 2.5GHz, 2GB DDR |
| (option) | 500GB HDD, 5 x USB ports, 1 x RJ45, WiFi |
|
DIMENSION
|
2195(H) x 1365(W) x 230(D) mm, monitor part only Basement or wall mount bracket option |
| WEIGHT | 250 Kg approx. without air-con |
| Waterproof IP54 Enclosure w/ AR Vandal glass | |
| COOLING | Cooling fans controlled by MCU for semi-outdoor |
| 2 x 600W industrial air-con for outdoor | |
| ENVIRONMENTAL |
Operating Temperature -20-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
