Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M650EDCP-DF-SW |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 3840x2160 4K Max. Resolution |
|---|---|---|---|
| Brightness: | 2500 Nits / 500 Nits | Power Consumption: | 100W For 700 Nits Panel, 450W For 2500 Nits Panel |
| Operating Temperature: | -20C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| High Light: | indoor digital advertising display,touch screen digital signage |
||

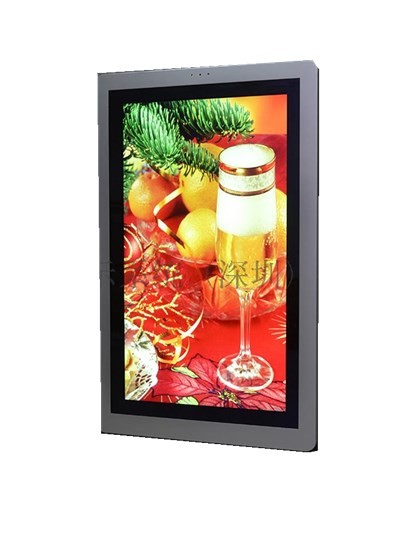

Maxbright 65 inch High Bright Double Sided Store Window Signage E-poster M650EDCP-DF-SW
LED Array Backlight Enhanced
Model: M650EDCP-DF-SW
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500 nits + 700 nits
3840 x 2160 Max. QWUXGA Resolution
Aspect Ratio: 9:16 in portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Waterproof and Fashion Design
Media player box or mini PC Built-in (option)
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 803.52 x 1428.48 mm portrait orientation |
| NATIVE RESOLUTION | 2160 x 3840 QWUXGA Max Resolution |
| PIXEL PITCH | 0.372(H) x 0.372(V) mm |
| COLOR | 1.073 G, 10 bits |
| HORIZONTAL FREQ. | 121.8KHz ~ 140KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL) |
| BRIGHTNESS | 2500 cd/m2 for street side, 500 cd/m2 for store side |
| CONTRAST RATIO | 1100:1, Dynamic contrast ratio: 8000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 8msec typical |
| INTERFACE | VGA, HDMI x 2 |
| MEDIA PLAYER | Media Player (RK3288 Android OS) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 80W for 500 nits panel, 450W for 2500 nits panel |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: D2550 Dual Core 1.8GHz, 4GB DDR2 |
| (option) | 2.5” HD, 5 x USB ports, 1 x RJ45 |
| DIMENSION |
1515(H) x 839(W) x 125(D) mm, Narrow Bezel, L / R / Bottom: 18mm, Up: 68mm |
| WEIGHT | 75 Kg approx |
| Waterproof IP54 Enclosure option | |
| COOLING | By cooling fans controlled by MCU |
| INSTALLATION | Hang from Top or by Floor Stand |
| ENVIRONMENTAL |
Operating Temperature -10-45oC, Wide temp. -30-50oC (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
