Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | Maxbright |
Certification: | CE |
Model Number: | M650EDCL-DF |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
Delivery Time: | 4~5 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100 sets / Month |
Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 3840 X 2160 RGB (4K) UHD |
---|---|---|---|
Brightness: | 2500 Nits + 700 Nits | Power Consumption: | 520W For 2500 Ntis Panel, 100W For 700 Nits Panel |
Operating Temperature: | -20C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
High Light: | touch screen digital signage,floor standing digital signage |

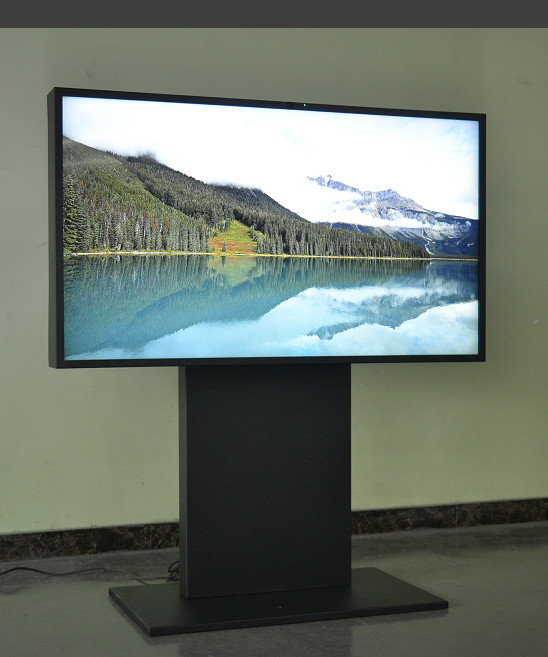

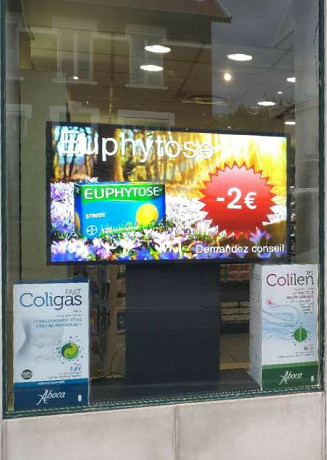

Maxbright 65 inch High Bright Double Sided Shop Window Signage Display M650EDCL-DF-SW
LED Array Backlight Enhanced
Model: M650EDCL-DF-SW
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500 nits + 700 nits
3840 x 2160 Max. Resolution
Aspect Ratio: 16:9 in Landscape mode
Wide Viewing Angles 178 deg (L/R/U/D)
Waterproof and Fashion Design
Media player box or mini PC Built-in (option)
PANEL TYPE | a-Si active matrix TFT-LCD |
ACTIVE AREA | 1428.48 x 803.52mm Landscape orientation |
NATIVE RESOLUTION | 3840 x 2160 RGB QWUXGA |
PIXEL PITCH | 0.372(H) x 0.372(V) mm |
COLOR | 1.073 Billon, 10 bits |
HORIZONTAL FREQ. | 121.8KHz ~ 140KHz(HDMI) |
VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL) |
BRIGHTNESS | 2500 cd/m2 for Window face, 700 cd/ m2 for indoor face |
CONTRAST RATIO | 1100:1, Dynamic Contrast: 10,000:1 |
DIMMING | Auto Dimming by Light Sensor, 100% to 10% |
VIEWING ANGLE | 89/89/89/89 |
RESPONSE TIME | 8 msec typical |
INTERFACE | VGA, HDMI x 2, |
MEDIA PLAYER | Media Player (RK3288 Quad-core) 2G/8G memory |
REMOTE CONTROL | Support for Full OSD Features |
OPERATING VOLTAGE | 100 ~ 240VAC 50/60Hz |
POWER CONSUMPTION | 100W for 700 nits panel, 520W for 2500 nits panel |
STANDBY MODE | 10 Watt or less |
ACCESSORIES | AC Power Cord, Remote Controller |
HDMI, VGA, RJ45 cable x 1 | |
OPERATING | Mini PC: D2550 Quad-Core 1.86GHz, 2GB DDR2 |
(option) | 500 HDD, 5 x USB ports, 1 x RJ45, Wi-Fi |
TOUCH | G+G Projective CAP, 10 points with USB controller(option) |
DIMENSION | 1910(H) x 990(W) x 160(D) mm |
Without Hang Mount Bracket | |
WEIGHT | 112 Kg approx N. weight, 130Kg G. weight |
ENCLOSURE | Iron Sheet folded, Outdoor Powder Coating, |
COOLING | By cooling fans controlled by intelligent MCU controller |
TEMPERATURE. PROTECT | High Temperature Protection for 60 oC or over |
ENVIRONMENTAL | Operating Temperature -20-45oC, |
Wide temp. -25-50oC (option) | |
Operating Humidity 10%-80% | |
Storage Temperature -30-60oC | |
Storage Humidity 5%-90% | |
Warranty | One year |
