Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | Maxbright |
Certification: | CE |
Model Number: | T550EDCP |
Minimum Order Quantity: | 1 |
Price: | Negotiable |
Packaging Details: | Pearl cotton shock absorption + carton packaging |
Delivery Time: | 4~5 weeks |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100 sets / Month |
Name: | Floor Stand LCD Advertising Display | Resolution: | 1920 X 1080 |
---|---|---|---|
Brightness: | 1500 Cd/m2 For Window Face | Power Consumption: | 330W At 1500 Nits Bright Level |
Operating Temperature: | -20C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
Touch Screen: | 10 Points Projected CAP Touch Option | ||
High Light: | indoor digital advertising display,floor standing digital signage |

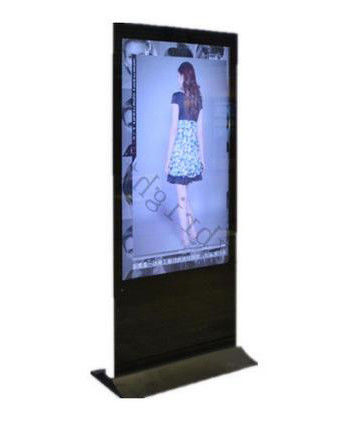

Maxbright 55" High Bright Shop Window Signage Kiosk T550EDCP-indoor
LED Array Backlight Enhanced
Model: T550EDCP-indoor
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 1500 nits
1920 x 1080 Max. Resolution
Aspect Ratio: 9:16 in portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Waterproof and Fashion Design
Media player box or mini PC Built-in (option)
PANEL TYPE | a-Si active matrix TFT-LCD |
ACTIVE AREA | 1209.6 x 680.4mm Portrait orientation |
NATIVE RESOLUTION | 1920 x 1080 RGB WUXGA |
PIXEL PITCH | 0.630(H) x 0.630(V) mm |
COLOR | 16.7 M, 8 bits |
HORIZONTAL FREQ. | 15KHz ~ 135KHz(HDMI) |
VERTICAL FREQ. | 24Hz ~ 75Hz(HDMI) |
BRIGHTNESS | 1500 cd/m2 for Window face |
CONTRAST RATIO | 1300:1, Dynamic Contrast: 10,000:1 |
DIMMING | Auto Dimming by Light Sensor, 100% to 10% |
VIEWING ANGLE | 89/89/89/89 |
RESPONSE TIME | 4.5msec typical |
INTERFACE | VGA, HDMI x 2, |
MEDIA PLAYER | Media Player (RK3288 Quad-core) 2G/8G memory |
REMOTE CONTROL | Support for Full OSD Features |
OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
POWER CONSUMPTION | 330W for 1500 nits brightness level |
STANDBY MODE | 5 Watt or less |
ACCESSORIES | AC Power Cord, Remote Controller |
HDMI, VGA, RJ45 cable x 1 | |
OPERATING | Mini PC: D2550 Quad-Core 1.86GHz, 2GB DDR2 |
(option) | 500 HDD, 5 x USB ports, 1 x RJ45, Wi-Fi |
TOUCH | G+G Projective CAP, 10 points with USB controller(option) |
DIMENSION | 2000(H) x 840(W) x 85(D) mm |
Without Basement | |
WEIGHT | 115 Kg approx net weight, 125Kg gross weight |
ENCLOSURE | Iron Sheet folded, Outdoor Powder Coating, |
COOLING | By cooling fans controlled by intelligent controller |
TEMPERATURE. PROTECT | High Temperature Protection for 60 oC or over |
ENVIRONMENTAL | Operating Temperature -20-40oC, |
Wide temp. -20-45oC (option) | |
Operating Humidity 10%-80% | |
Storage Temperature -30-60oC | |
Storage Humidity 5%-90% | |
Warranty | One year |
