Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | M490EDCP-DF |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Brightness: | 1500 Nits | Power Consumption: | 380W |
| Operating Temperature: | -30C - 60C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| High Light: | indoor digital advertising display,floor standing digital signage |
||

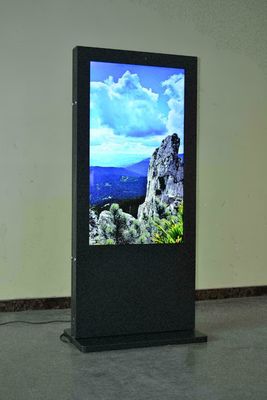

Maxbright 49" High Bright Dual Face Shop Window Signage E-poster M490EDCP-DF
LED Array Backlight Enhanced
Model: M490EDCP-DF
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2500 nits
1920 x 1080 Max. Resolution
Aspect Ratio: 9:16 in portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Waterproof and Fashion Design
Media player box or mini PC Built-in (option)
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1096.2 x 632.5mm Portrait orientation |
| NATIVE RESOLUTION | 1920 x 1080 RGB WUXGA |
| PIXEL PITCH | 0.55926(H) x 0.55926(V) mm |
| COLOR | 16.7 M, 8 bits |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz(HDMI) |
| VERTICAL FREQ. | 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC) |
| BRIGHTNESS | 2500 cd/m2 for Window face, 700 cd/ m2 for indoor face |
| CONTRAST RATIO | 1100:1, Dynamic Contrast: 9,000:1 |
| DIMMING | Auto Dimming by Light Sensor, 100% to 10% |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 12 msec typical |
| INTERFACE | VGA, HDMI x 2, |
| MEDIA PLAYER | Media Player (RK3288 Quad-core) 2G/8G memory |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 100W for 700 nits panel, 380W for 2500 nits panel |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA, RJ45 cable x 1 | |
| OPERATING | Mini PC: D2550 Quad-Core 1.86GHz, 2GB DDR2 |
| (option) | 500 HDD, 5 x USB ports, 1 x RJ45, Wi-Fi |
| TOUCH | G+G Projective CAP, 10 points with USB controller(option) |
| DIMENSION | 1188(H) x 650(W) x 100(D) mm |
| Without Hang Mount Bracket or Floor Stand | |
| WEIGHT | 58 Kg approx net weight, 70Kg gross weight |
| ENCLOSURE | Iron Sheet folded, Outdoor Powder Coating, |
| COOLING | By cooling fans on top and intelligent controller |
| TEMPERATURE. PROTECT | High Temperature Protection for 60 oC or over |
| ENVIRONMENTAL | Operating Temperature -20-40oC, |
| Wide temp. -20-45oC (option) | |
| Operating Humidity 10%-80% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| Warranty | One year |
