Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T320EDCP-DP |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | EPE Foam Pearl cotton shock absorption + carton packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Brightness: | 2500 Nits + 2500 Nits | Power Consumption: | 330W For Two Panel |
| Operating Temperature: | -20C - 45C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| High Light: | indoor digital advertising display,floor standing digital signage |
||

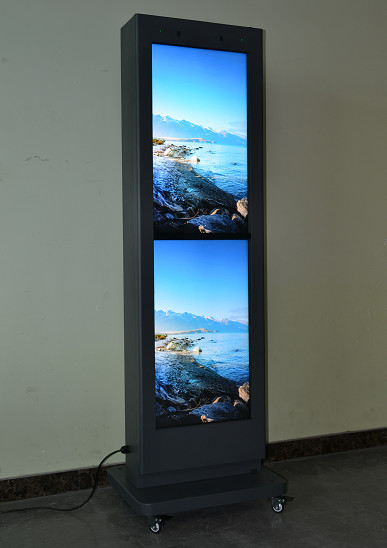

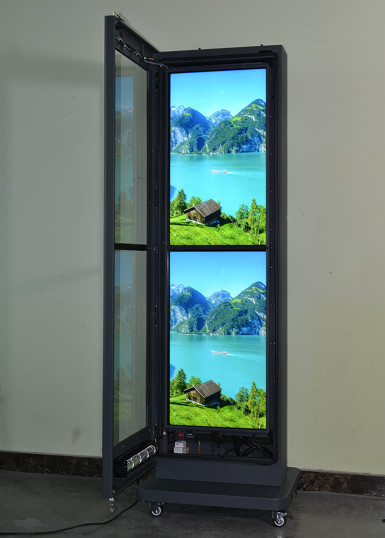

Maxbright 32 inch High Bright Dual Panel Store Window Display Kiosk T320EDCP-DP-SW
LED Array Backlight Enhanced
Model: T320EDCP-DP-SW
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000 - 2500 nits,
Completely Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 16:9 Portrait mode
Wide Viewing Angles 178 deg (L/R/U/D)
Digital and Analog Interface
Media player box with Android OS
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 392.85 x 698.4 mm, portrait orientation |
| NATIVE RESOLUTION | 1920 x 1080 RGB |
| PIXEL PITCH | 0.36375 x 0.36375 mm |
| COLOR | 8 bits 16.7 M |
| HORIZONTAL FREQ. | 121.8KHz ~ 136.4KHz |
| VERTICAL FREQ. | 95Hz ~ 121.2 Hz |
| BRIGHTNESS | 2000-2500 cd/m2, LED backlight enhanced |
| CONTRAST | 1100:1, Dynamic contrast ratio: 6000:1 |
| DIMMING | Auto dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 10ms Gray to Gray |
| INTERFACE | VGA, HDMI x 2, USB x 2 |
| MEDIA PLAYER | Media Player (RK 3288 chip) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | 100 ~ 240VAC 50/60Hz |
| POWER CONSUMPTION | 230W for two panels at 2500 nits brightness level |
| STANDBY MODE | 10 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI cable x 1, USB cable x 2 | |
| OPERATING | Mini PC: D2550 Dual Core 1.86GHz, 2GB DDR2 |
| (option) | 2.5” HD, 5 x USB ports, 1 x RJ45 |
|
DIMENSION WEIGHT |
1870(H) x 535(W) x 200(D) mm, 53 Kg approx. |
| COOLING | By cooling fans controlled by MCU |
| ENVIRONMENTAL | Operating Temperature -20-45C, |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-65C | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
