Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T490EEAP-TS |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | EPE foam shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Panel Type: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Brightness: | 450 Nits + 450 Nits | Power Consumption: | 280W Total |
| Operating Temperature: | -20C - 50C | Operating Voltage: | 100 - 240 VAC 50-60Hz |
| Touch Screen: | 10 Points PCAP Option | ||
| Highlight: | touch screen digital signage,floor standing digital signage |
||

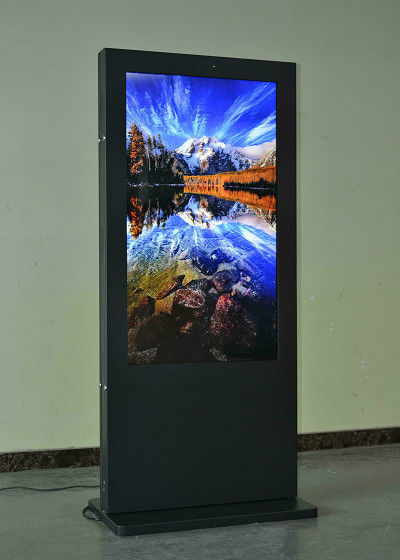

49" Double Sided Indoor Projected Capacitive Touch Screen Digital Signage Kiosk T490EEAP-TS
with Two Sides PCAP Touch Screen
Model: T490EEAP-DF-TS
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 450 nits + 450 nits
1920 x 1080 Max. Resolution
Aspect Ratio: 9:16 in portrait mode
Projected Capacitive Touch 10 points for Two Sides
Wide Viewing Angles 178 deg (L/R/U/D)
Narrow Bezel and Fashion Design
Media player box or mini PC Built-in
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 632.5 x 1096.2 mm, portrait orientation |
| NATIVE RESOLUTION | 1080 x 1920 RGB, Portrait mode |
| PIXEL PITCH | 0.55926 x 0.55926 mm |
| COLOR | 8 bits 16.7 Million color |
| BRIGHTNESS | 400-450 cd/m2, before protective glass |
| CONTRAST | 1300:1, |
| DIMMING | Dimming by OSD from 30%--100% |
| VIEWING ANGLE | 89/89/89/89 |
| ESPONSE TIME | 12ms / 6ms |
| INTERFACE | VGA, AV, S-video, HDMI |
| Video System | PAL/SECAM/NTSC-3.58, NTSC-4.43, PAL-60 |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 280 Watt for both panels |
| STANDBY MODE | 10 Watt or less |
| ENCLOSURE | Iron sheet folded for main frame and two doors |
| LIFETIME | 50,000 Hrs |
| PROTECTION | 5mm vandal glass on the front, 5mm AR glass option |
| DIMENSION | 1880(H) x 780(W) x 160(D) mm |
| WEIGHT | 85 Kg approx |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA, Composite, S-Video cable x 1 | |
| OPERATING (Option) | Mini PC: D2550 Dual Core 1.86GHz, 2GB DDR2 |
| 500G HDD, 4 x USB ports, 1 x RJ45, 1 x HDMI | |
| MEDIA PLAYER | Media Player (RK3288) (option) |
| TOUCH SCREEN | Two Sides PCAP Touch screen with USB controller |
| OPERATING | RK3288 Android Player, 2G/8G, Android OS 7.1 |
| INTERFACE | HDMI out, 1 x RJ45, 2 x USB |
| COOLING | By cooling fans and temp sensor |
| ENVIRONMENTAL | Operating Temperature -10 - 45C, |
| Operating Humidity 10% - 80% | |
| Storage Temperature -30 - 60C | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year |
